strong custom rare earth neodymium round pot magnets

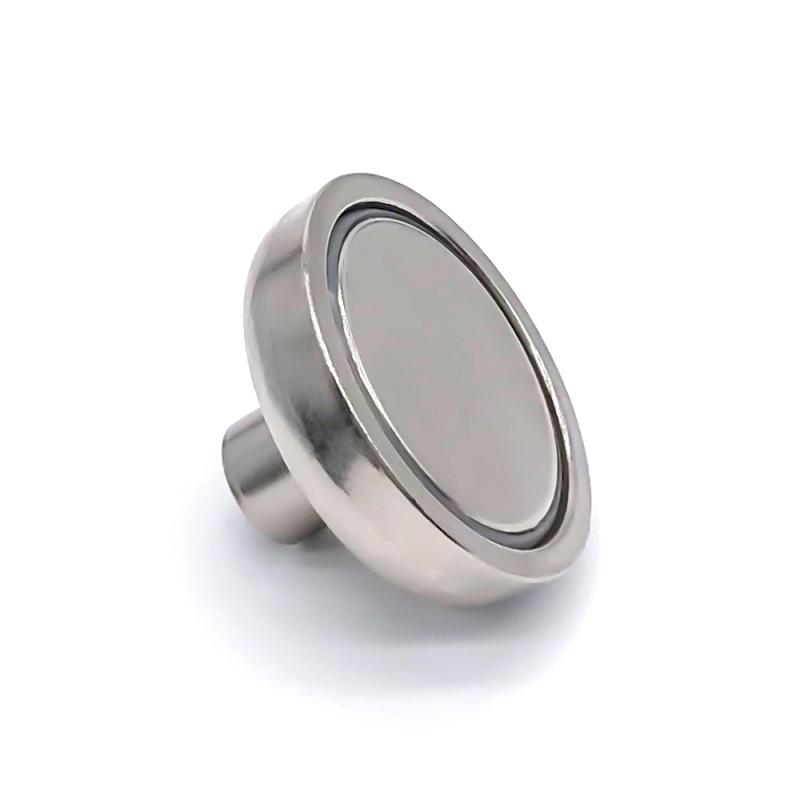

Screwed Bush NdFeB Pot Magnet


1.Dimensions: Dia from 10mm to 120mm


2.Materials: NdFeB,Grade N35 to N52 (M,H,SH,UH,EH AH)


3.Plating/Coating: Zinc,Nickel,Epoxy or Color paint.


4.Magnetization direction: Axial magnetized


5.Max operating temp.: 80 to 220 degrees celsius


They widely use for trade fair,any shop build ,at home or other purpose.No matter use in private household or commercial or hobby applications are all suitable.



Product Detail
Product Detail

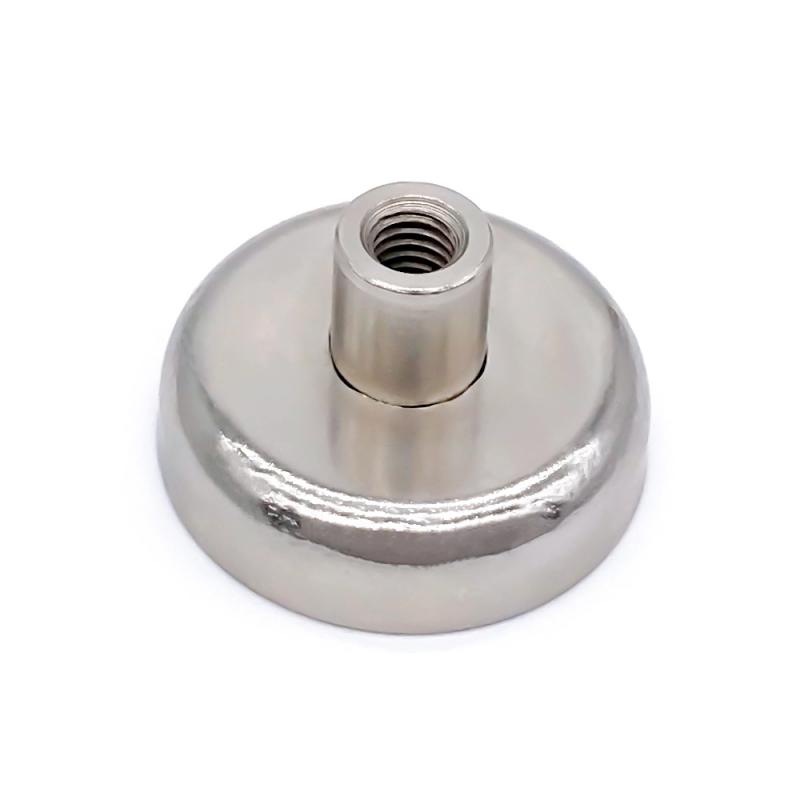

These pot magnets have screw bush hole,can for M3,M4,M5,M6,M8 M10 or customized.They need to fastened with an male thread or hook.As the metal pot to change the magnetic flux to make the force become strong,so even with a small size,but the force is very strong.They are suitable for strong and quickly removable fasten no need drilling.

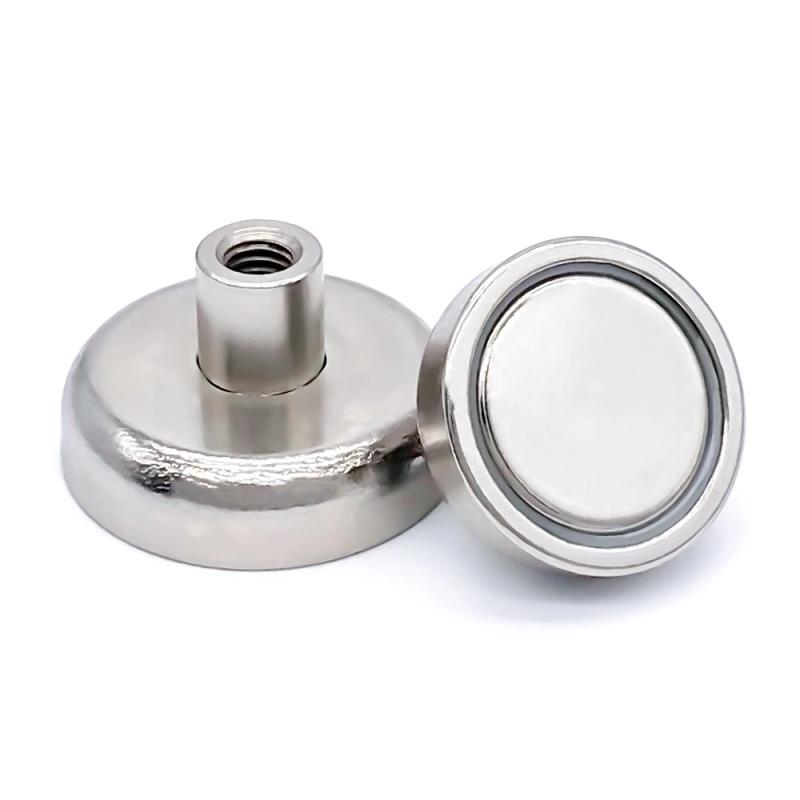

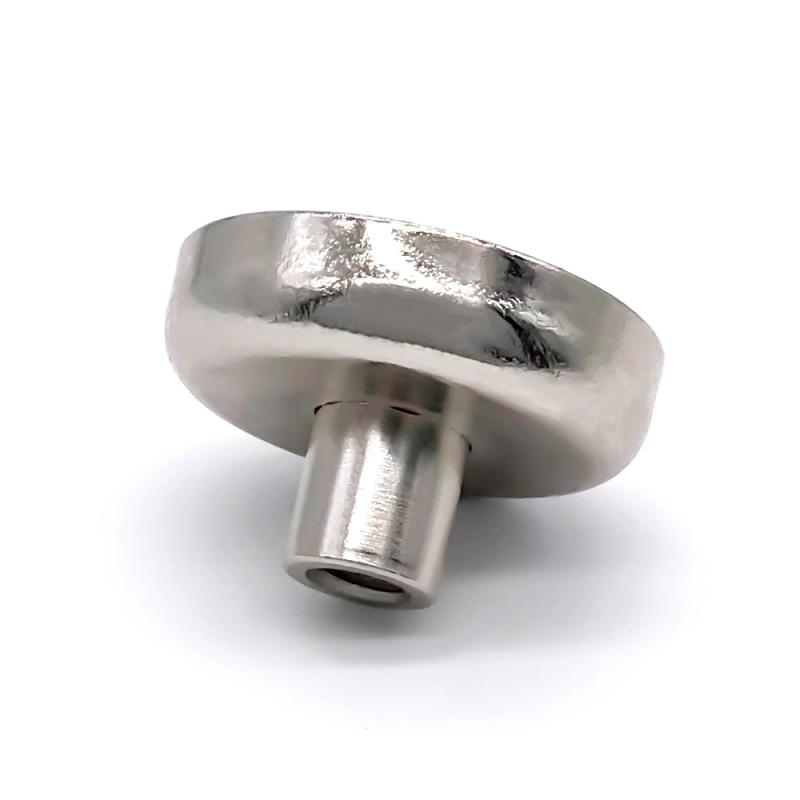

1.Screwed bush neodymium pot magnet

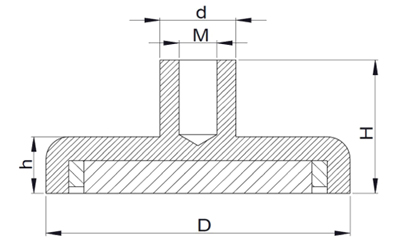

Model D(mm) D1(mm) M H(mm) h(mm) Weight(g) Pull Force(KG)
KM-SND10 10 6 M3 12.5 5 4 2
KM-SND12 12 6 M3 12.5 5 5 4
KM-SND16 16 6.5 M4 12.6 5 9 8
KM-SND20 20 6.5 M4 14 7 17 12
KM-SND25 25 7.5 M5 17 8 31 25
KM-SND32 32 10 M6 18 8 52 34
KM-SND36 36 10 M6 18 8 60 50
KM-SND42 42 10 M6 18 8.6 95 72
KM-LND48 48 12 M8 24 11 160 81
KM-LND55 55 12 M8 28 12 230 95
KM-LND60 60 12 M8 28 15 340 160
KM-LND70 70 17 M10 34 17 520 200
KM-LND75 75 17 M10 35 18 635 250
KM-LND80 80 17 M10 35 18 715 300
KM-LND90 90 17 M10 35 18 910 360
KM-LND120 120 22 M12 40 18 1660 480


2.Technical informations

Dimensions: Standard size or custom

Grade of magnet: N35,N42,N52,or higher grade of magnet can be customzed for high temperature requirements,such as M or H series and the temp. resistance is 100 deg.c or 120 deg.c

Processing technology of steel cup: Stamping machining or lathe machining.

Surface treatment: Znic,Nikcel,Chrome,Epoxy,Color paint.

Tolerance: +/-0.05mm

Vertically force: From 2 Kg to 480 Kg


3.The main types of pot neodymium magnets

1. Countersunk hole type

2. Straight hole type

3. External thread type

4. Screwed bush type

5. Internal thread hole

6. Deep pot type

7. Block shap with one or two countersunk hole

Depending on the requirements of your installation,you can choose the appropriate type.

Here is the catalog of pot neodymium magnet,or you can download it by clicking the "Download" menu in the upper right corner.


4.Grade of NdfeB Magnet:

If your application is at room temperature only,the N series is the best choice,with a max operating temperature 80 degrees Celsius. In the N series,the N55 grade has strongest magnetic force,and is also the most expensive. Generally speaking,the N35 grade is relatively cost-effective and also have strong magnetic force.But which grade to choose depends on your pursuit of magnetic force or say application.

The higher the temperature of resistance of the magnet,the more expensive it is.For example,N35 grade and N35M grade have the same magnetic force,but the max opearting temp. of N35M is 100 degrees Celsuis

Please click here to check the properities of sintered neodymium magnet.
