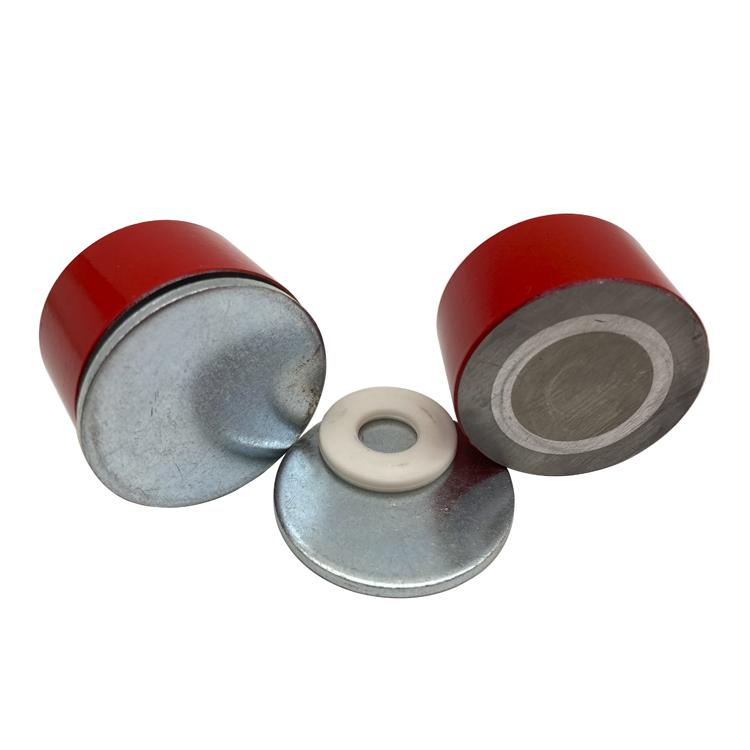

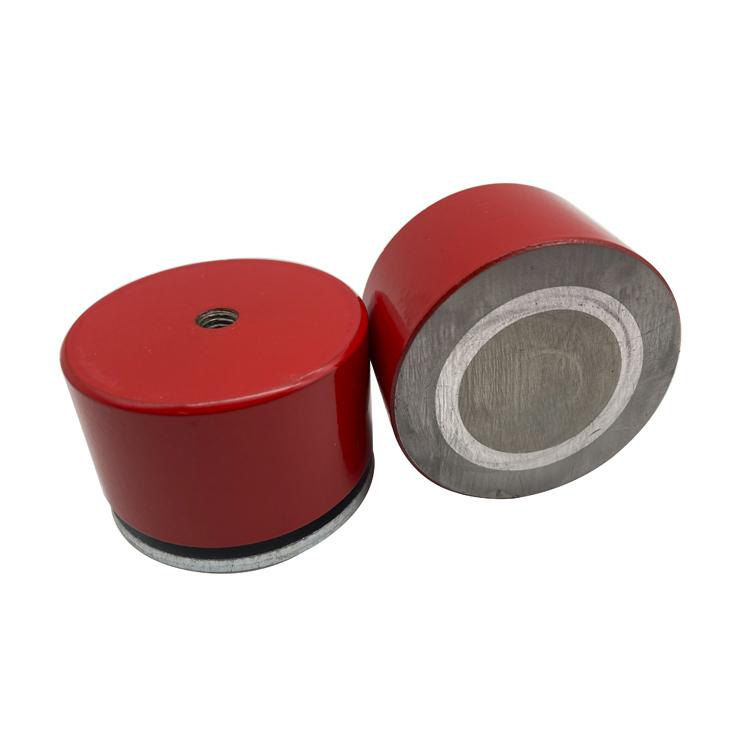

Alnico Deep Pot Magnet

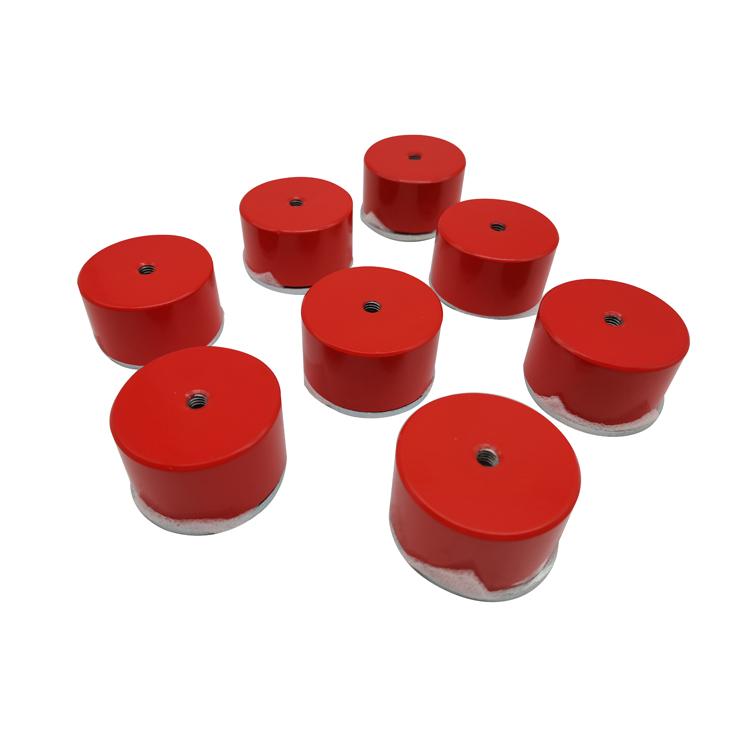

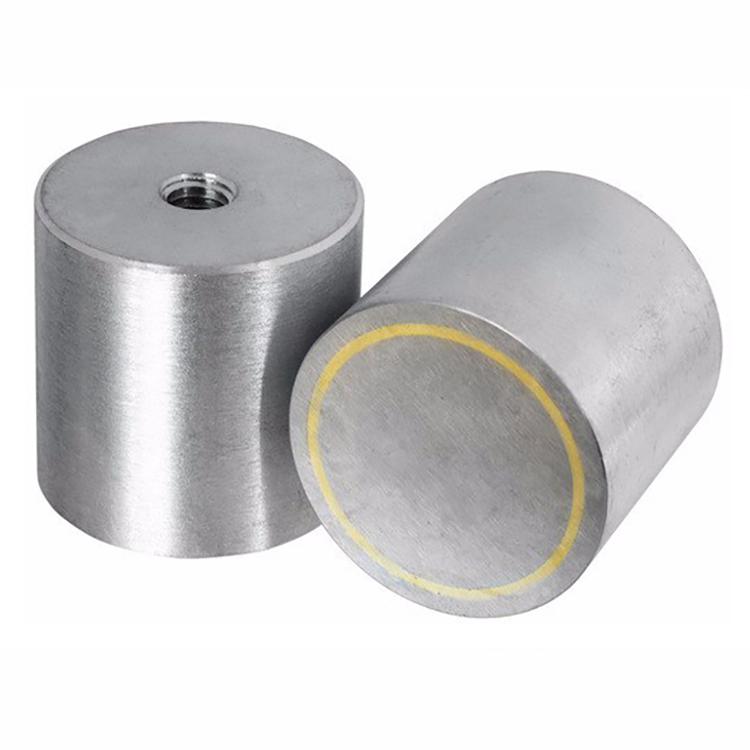

Alnico Deep Pot Magnet With Internal Thread


1.Dimensions: Dia from 9.5 mm to 65 mm


2.Materials: Alnico 5 / Alnico 8


3.Plating/Coating: Red painted


4.Magnetization direction: Axial magnetized


5.Max operating temp.: 525 degrees celsius


They are ideal for gripping,lifting,holding,fixing applications.


Product Detail

Alnico deep pot magnet are very popular in clamping applications because you can simply bolt them onto your assembly. The larger units provide very powerful clamping forces, with the mild steel outer cup providing protection and mechanical strength to the pot magnet and inner magnet. Because the mild steel is threaded, reasonably high torque can be applied to securely hold the pot magnet in place.


1.Standard size of alinco deep pot magnet

Part No.
Dia
(mm)
Height
(mm)
Central Hole
Pull Force
(KG)
KMA301 9.5 15.1 M3 1
KMA302 12.7 15.8 M4 2
KMA303 17.5 16 M6 3
KMA304 20.5 19 M6 5
KMA305 27 25 M6 10
KMA306 30 35 M6 8
KMA307 35 20 M6 15
KMA308 35 30 M6 18
KMA309 40 30 M8 25
KMA3010 40 35 M6 35
KMA3011 45 25 M6 15
KMA3012 45 30 M8 40
KMA3013 50 40 M8 50
KMA3014 65 43 M12 60


2.Technical informations

Dimensions: Standard size or custom

Grade of magnet: Alnico 5 / Alnico 8

Surface treatment: Red painted

Tolerance: +/-0.1mm

Vertically force: From 3 Kg to 50 Kg


3.The main types of pot neodymium magnets

1. Alnico shallow pot manget

2. Alnico deep pot magnet

Depending on the requirements of your installation,you can choose the appropriate type.

Here is the catalog of alnico pot magnet,or you can download it by clicking the "Download" menu in the upper right corner.


4.Grade of alnico magnet

Alnico 5 magnet is more commen grade.It have very good corrosion resistence and high max working temperature can reach 550 deg.C.

Please click here to check the properities of alnico magnet.
