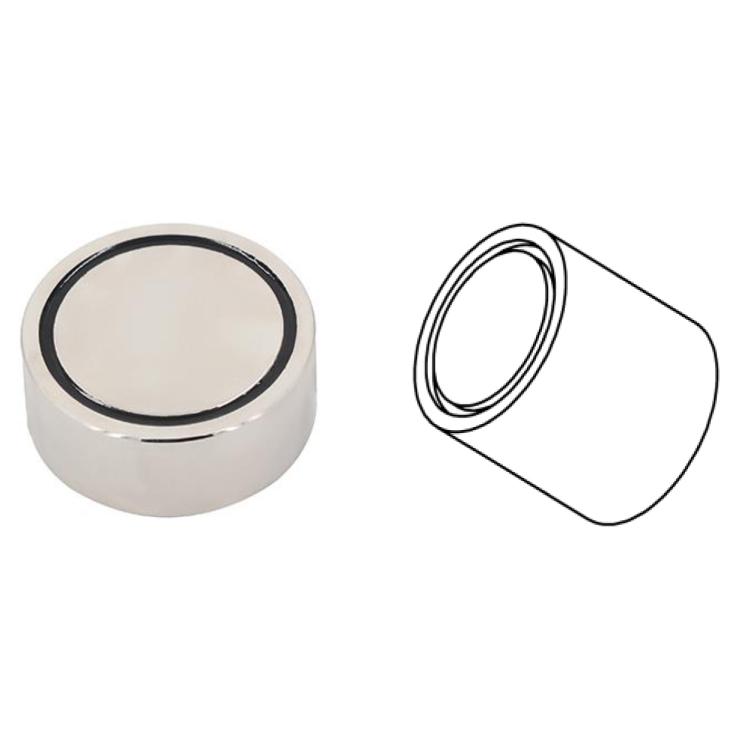

Deep pot neodymium magnet

Internal Thread NdFeB Pot Magnet

1.Dimensions: Dia from 10 mm to 120 mm

2.Materials: NdFeB,Grade N35 to N52 (M,H,SH,UH,EH AH)

3.Plating/Coating: Zinc,Nickel,Epoxy or Color paint.

4.Magnetization direction: Axial magnetized

5.Max operating temp.: 80 to 220 degrees celsius

They are suitable for strong and quickly removable fasten no need drilling.They widely use for trade fair,any shop build or other purpose.No matter use in private household or commercial or hobby applications are all suitable.

Product Detail

These deep pot NdFeB magnet,can for M3,M4,M5,M6,M8 M10 or customized.They need to fastened with an male thread.As the metal pot to change the magnetic flux to make the force become strong,so even with a small size,but the force is very strong.

1.Deep pot neodymium magnet

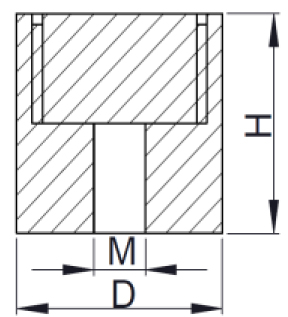

Model D(mm) H(mm) M Weight(g) Pull Force(KG)
KM-LNP10 10 8 M3 5 2
KM-LNP12 12 8 M3 7 4
KM-LNP16 16 8 M4 12 8
KM-LNP20 20 10 M4 24 12
KM-LNP25 25 10 M5 37 25
KM-LNP32 32 10 M6 61 34
KM-LNP36 36 10 M6 77 50
KM-LNP42 42 15 M6 158 72
KM-LNP48 48 15 M8 206 81
KM-LNP55 55 15 M8 271 95
KM-LNP60 60 15 M8 322 160
KM-LNP70 70 20 M10 585 200
KM-LNP75 75 20 M10 672 270
KM-LNP80 80 20 M10 764 300
KM-LNP90 90 20 M10 967 360
KM-LNP120 120 20 M12 1720 480

2.Technical informations

Dimensions: Standard size or custom

Grade of magnet: N35,N42,N52,or higher grade of magnet can be customzed for high temperature requirements,such as M or H series and the temp. resistance is 100 deg.c or 120 deg.c

Processing technology of steel cup: Stamping machining or lathe machining.

Surface treatment: Znic,Nikcel,Chrome,Epoxy,Color paint.

Tolerance: +/-0.05mm

Vertically force: From 2 Kg to 480 Kg

3.The main types of pot neodymium magnets

1. Countersunk hole type

2. Straight hole type

3. External thread type

4. Screwed bush type

5. Internal thread hole

6. Deep pot type

7. Block shap with one or two countersunk hole

Depending on the requirements of your installation,you can choose the appropriate type.

Here is the catalog of pot neodymium magnet,or you can download it by clicking the "Download" menu in the upper right corner.

4.Grade of NdfeB Magnet:

If your application is at room temperature only,the N series is the best choice,with a max operating temperature 80 degrees Celsius. In the N series,the N55 grade has strongest magnetic force,and is also the most expensive. Generally speaking,the N35 grade is relatively cost-effective and also have strong magnetic force.But which grade to choose depends on your pursuit of magnetic force or say application.

The higher the temperature of resistance of the magnet,the more expensive it is.For example,N35 grade and N35M grade have the same magnetic force,but the max opearting temp. of N35M is 100 degrees Celsuis

Please click here to check the properities of sintered neodymium magnet.
