Noedymium channel pot magnet Rectangular pot magnet

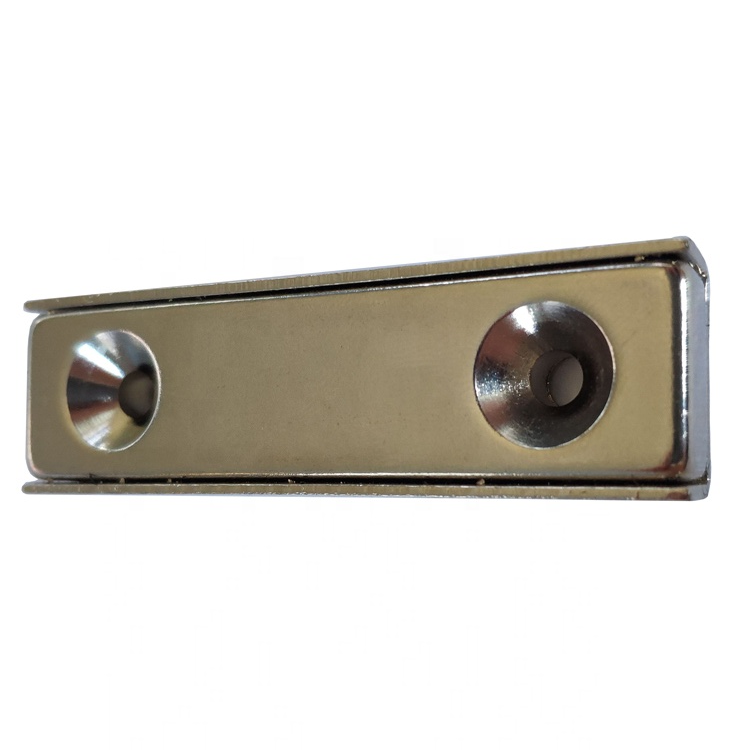

Neodymium Block/Recantgular Pot Magnet


1.Dimensions: Length from 10 mm to 120 mm,Width 13.5mm,Height 5mm


2.Materials: NdFeB,Grade N42


3.Plating/Coating: Zinc,Nickel


4.Magnetization direction: Through thickness


5.Max operating temp.: 80 degrees celsius

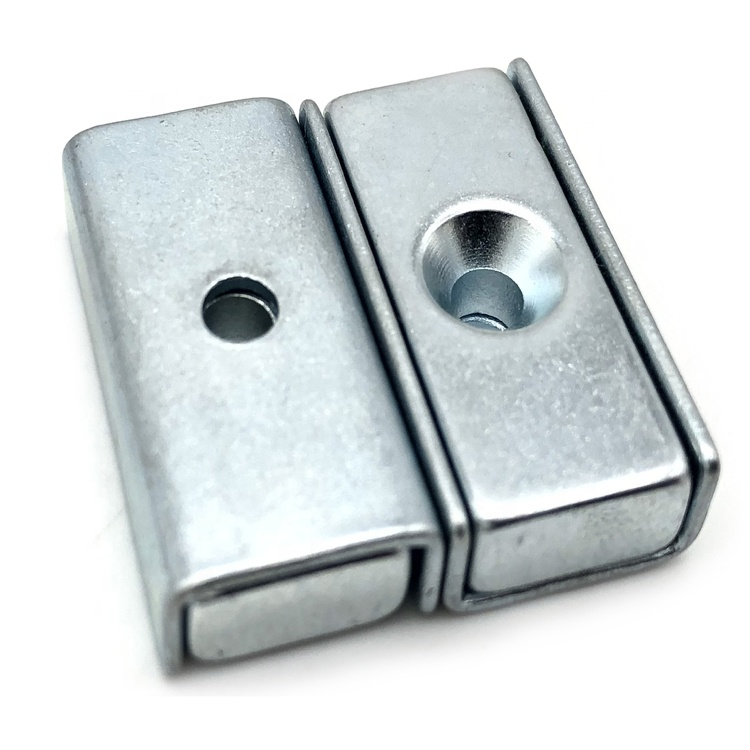

There are one or two countersunk holes in the block neodymium pot magnet,which can be used with countersunk head screws,and fixed on the equipment,wall and other places.


Product Detail

These rectangular pot magnet,can for M3,M4,M5,M6,M8 M10 or customized.They need to fastened with an male thread.As the metal pot to change the magnetic flux to make the force become strong,so even with a small size,but the force is very strong.


1.Rectangular NdFeB pot magnet

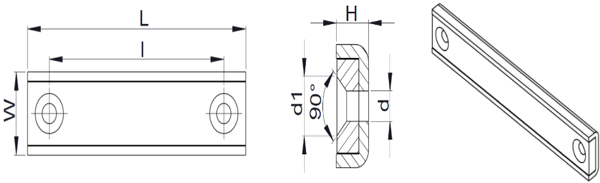

Model
L
(mm)
I
(mm)
W
(mm)
H
(mm)
d
(mm)
d1
(mm)
Weight
(g)
Vertiacl
Breakaway
(KG)
KM-SNI10 10 5 13.5 5 3.3 6.5 4.5 5
KM-SNI15 15 7.5 13.5 5 3.3 6.5 6.8 7
KM-SNI20 20 10 13.5 5 3.3 6.5 9.2 10
KM-SNI30 30 15 13.5 5 3.3 6.5 14 15

Model
L
(mm)
I
(mm)
W
(mm)
H
(mm)
d
(mm)
d1
(mm)
Weight
(g)
Vertiacl
Breakaway
(KG)
KM-SNI40 40 30 13.5 5 3.3 6.5 19 17
KM-SNI50 50 40 13.5 5 3.3 6.5 24 27
KM-SNI60 60 50 13.5 5 3.3 6.5 30 30
KM-SNI80 80 70 13.5 5 3.3 6.5 38 33
KM-SNI100 100 90 13.5 5 3.3 6.5 48 36
KM-SNI120 120 110 13.5 5 3.3 6.5 58 40


2.Technical informations

Dimensions: Standard size or custom

Grade of magnet: N42

Processing technology of steel cup: Stamping machining

Surface treatment: Znic,Nikcel

Tolerance: +/-0.05mm

Vertically force: From 5 Kg to 40 Kg


3.The main types of pot neodymium magnets

1. Countersunk hole type

2. Straight hole type

3. External thread type

4. Screwed bush type

5. Internal thread hole

6. Deep pot type

7. Block shap with one or two countersunk hole

Depending on the requirements of your installation,you can choose the appropriate type.

Here is the catalog of pot neodymium magnet,or you can download it by clicking the "Download" menu in the upper right corner.


4.Grade of NdfeB Magnet:

If your application is at room temperature only,the N series is the best choice,with a max operating temperature 80 degrees Celsius. In the N series,the N55 grade has strongest magnetic force,and is also the most expensive. Generally speaking,the N35 grade is relatively cost-effective and also have strong magnetic force.But which grade to choose depends on your pursuit of magnetic force or say application.

The higher the temperature of resistance of the magnet,the more expensive it is.For example,N35 grade and N35M grade have the same magnetic force,but the max opearting temp. of N35M is 100 degrees Celsuis

Please click here to check the properities of sintered neodymium magnet.
