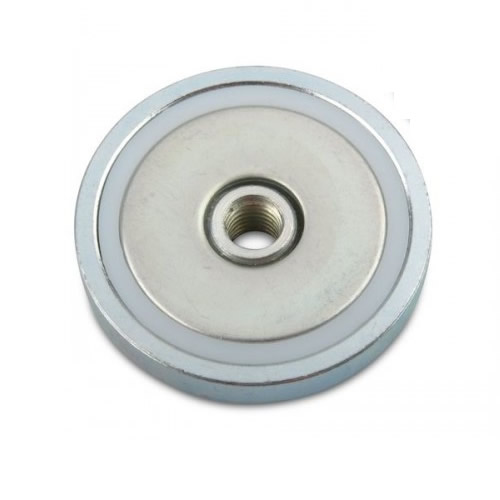

Internal thread neodymium pot magnet

Internal Thread NdFeB Pot Magnet

1.Dimensions: Dia from 16 mm to 75 mm

2.Materials: NdFeB,Grade N35 to N52 (M,H,SH,UH,EH AH)

3.Plating/Coating: Zinc,Nickel,Epoxy or Color paint.

4.Magnetization direction: Axial magnetized

5.Max operating temp.: 80 to 220 degrees celsius

They are suitable for strong and quickly removable fasten no need drilling.They widely use for trade fair,any shop build or other purpose.No matter use in private household or commercial or hobby applications are all suitable.

Product Detail

These pot magnets have a female thread hole,can for M3,M4,M5,M6,M8 M10 or customized.They need to fastened with an male thread.As the metal pot to change the magnetic flux to make the force become strong,so even with a small size,but the force is very strong.

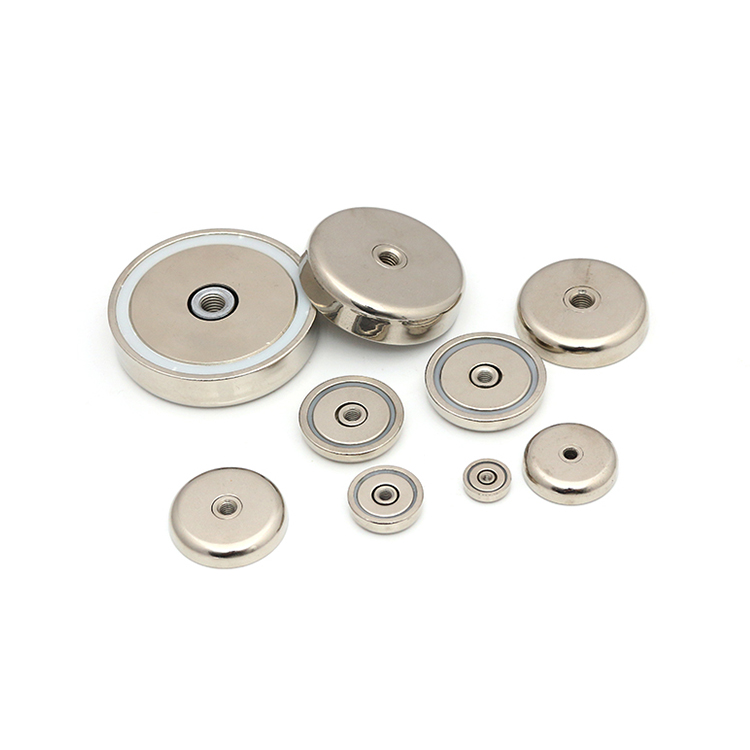

1.Internal thread neodymium pot magnet

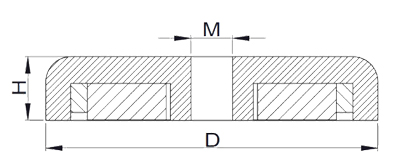

Model D(mm) H(mm) M Weight(g) Pull Force(KG)
KM-SNH16 16 5 M3 7 4
KM-SNH20 20 7 M4 14 8
KM-SNH25 25 7.7 M5 25 17
KM-SNH32 32 7.7 M5 44 27
KM-SNH36 36 7.5 M6 55 36
KM-SNH42 42 8.6 M6 86 50
KM-SNH48 48 10.6 M8 132 70
KM-LNH60 60 12 M8 229 140
KM-LNH75 75 15 M10 464 220

2.Technical informations

Dimensions: Standard size or custom

Grade of magnet: N35,N42,N52,or higher grade of magnet can be customzed for high temperature requirements,such as M or H series and the temp. resistance is 100 deg.c or 120 deg.c

Processing technology of steel cup: Stamping machining or lathe machining.

Surface treatment: Znic,Nikcel,Chrome,Epoxy,Color paint.

Tolerance: +/-0.05mm

Vertically force: From 4 Kg to 220 Kg

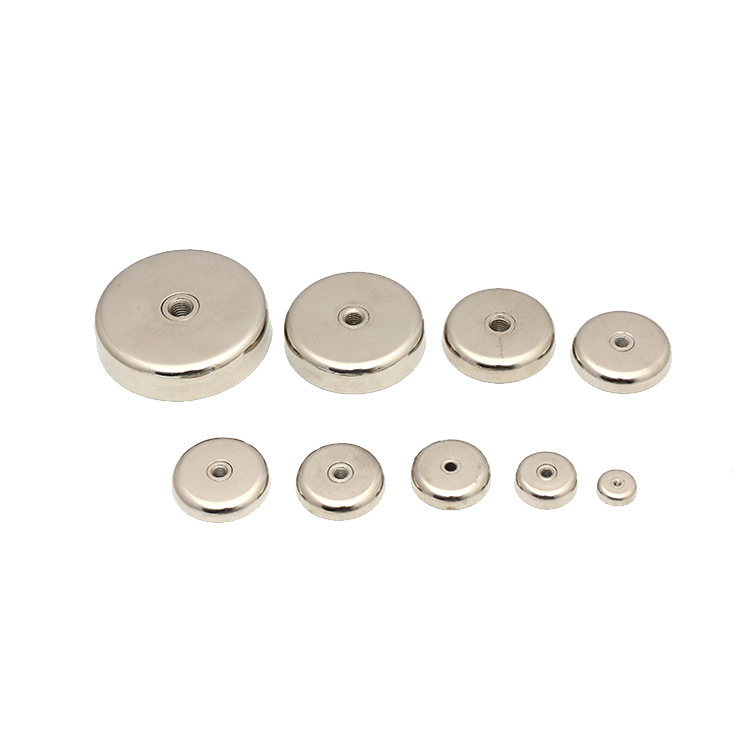

3.The main types of pot neodymium magnets

1. Countersunk hole type

2. Straight hole type

3. External thread type

4. Screwed bush type

5. Internal thread hole

6. Deep pot type

7. Block shap with one or two countersunk hole

Depending on the requirements of your installation,you can choose the appropriate type.

Here is the catalog of pot neodymium magnet,or you can download it by clicking the "Download" menu in the upper right corner.

4.Grade of NdfeB Magnet:

If your application is at room temperature only,the N series is the best choice,with a max operating temperature 80 degrees Celsius. In the N series,the N55 grade has strongest magnetic force,and is also the most expensive. Generally speaking,the N35 grade is relatively cost-effective and also have strong magnetic force.But which grade to choose depends on your pursuit of magnetic force or say application.

The higher the temperature of resistance of the magnet,the more expensive it is.For example,N35 grade and N35M grade have the same magnetic force,but the max opearting temp. of N35M is 100 degrees Celsuis

Please click here to check the properities of sintered neodymium magnet.
