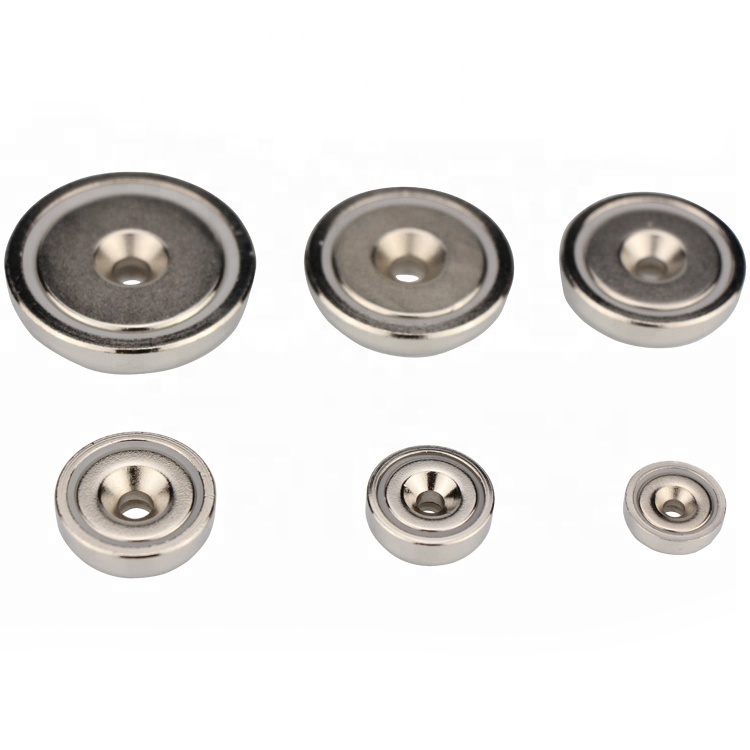

Inventory D20mm Round Base Magnet High Strength Neodymium Pot Magnet with Countersunk Hole

Inventory D20mm Round Base Magnet High Strength Neodymium Pot Magnet with Countersunk Hole

Neodymium Pot Magnet Neodymium Pot Magnet

Countersunk NdFeB Pot Magnet


1.Dimensions: Dia from 12mm to 120mm


2.Materials: NdFeB,Grade N35 to N52 (M,H,SH,UH,EH AH)


3.Plating/Coating: Zinc,Nickel,Epoxy or Color paint.


4.Magnetization direction: Axial magnetized


5.Max operating temp.: 80 to 220 degrees celsius


They are ideal for using in fixing applications such as doors,panels,marketing displays,light fixtures and fittings.


inquiry Form
Product Detail


Please see below we have 15+ models for you to choose

Wholesale Strong Rare Earth Round Countersunk Magnet Neodymium Pot Magnet With Hole Wholesale Strong Rare Earth Round Countersunk Magnet Neodymium Pot Magnet With Hole
Model D(mm) d(mm) d1(mm) H(mm) Weight(g) Pull Force(kg)
KM-SNA12 12 3.5 6.5 4.5 4 2.5
KM-SNA16 16 3.5 6.5 5 7 6
KM-SNA20 20 4.5 8.6 7 14 11
KM-SNA25 25 5.5 10.6 8 25 22
KM-SNA32 32 5.5 10.6 8 54 32
KM-SNA36 36 6.5 11.3 8 78 43
KM-SNA42 42 6.5 11.3 8.6 120 65
KM-SNA48 48 8.5 19 10.8 138 75
KM-SNA55 55 8.5 15.5 11 205 95
KM-SNA60 60 8.5 14.5 12 305 160
KM-SNA70 70 10.5 16.5 15 485 210
KM-SNA75 75 10.5 16.5 17 560 250
KM-SNA0 80 10.5 16.5 18 668 300
KM-SNA90 90 10.5 16.5 18 850 380
KM-SNA120 120 12.5 22.5 18 1520 480
