Custom whole bonded injection molding multi-pole 12 pole radial magnet ring,whole bonded injection molding multi-pole 12 pole radial magnet ring Manufacturer

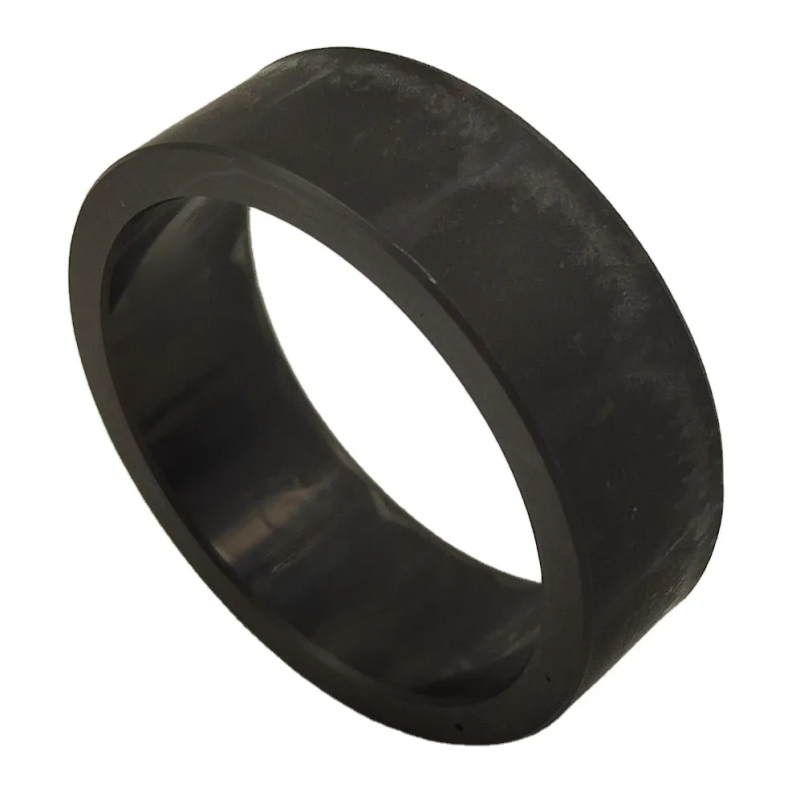

whole bonded injection molding multi-pole 12 pole radial magnet ring

Multi Pole Injection Ferrite Magnet

1.Material: PA6 Base resin+Ferrite Magnetic Powder

2.Dimensions: According to your requirements

3.Grade: MF-618,MF-620 and etc

4.Max Operating Temperature: -20°C to +15O°C

5.Magnetized: Axial,Diametrical or Multi-Poles

6.Advantage: High dimensional accuracy, good consistency, no follow-up processing, stable performance, shock resistance

inquiry Form

Product Detail

Product Detail

Physical Properties of Injection Molded Ferrite:

Density: 3.08-3.88g/cm³
Tension Strength: 50-102( MPa)
Flexural Strength : 93-185( MPa)
Max. Operation Temperature: -40 to 150 (℃)
Hardness :118-120

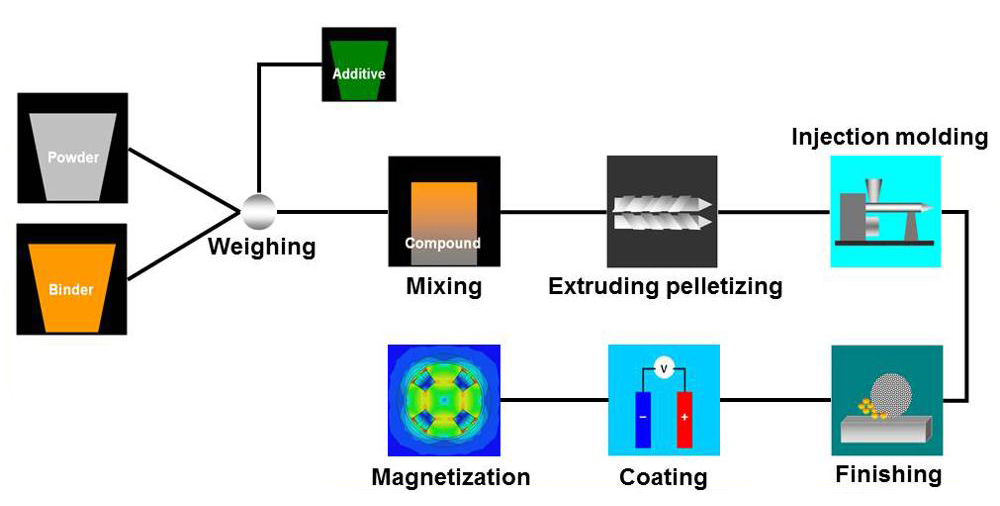

Production process:

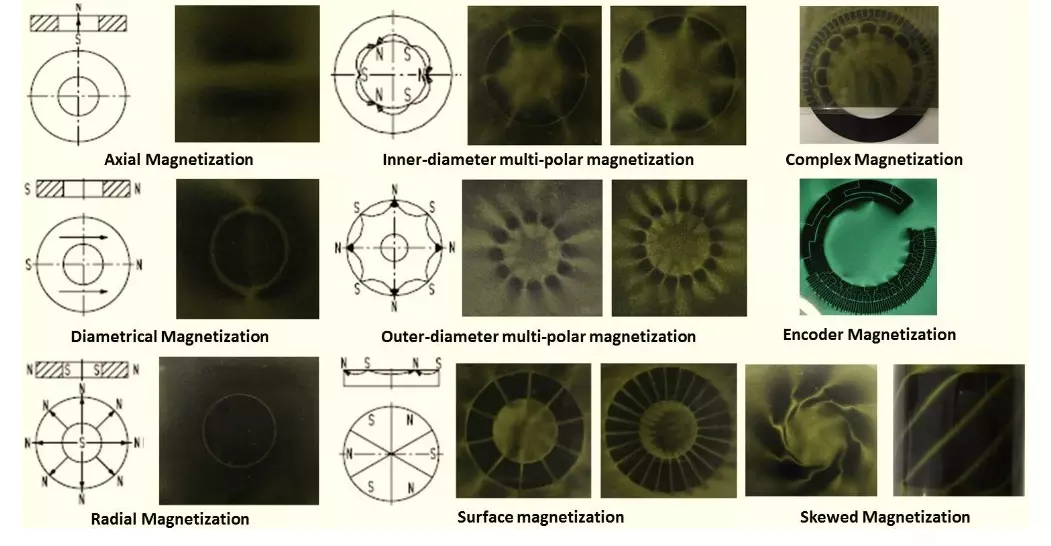

Magnetized:

Applications:
Fan Motors
Wiper Motors
EPS Motors
Starter Motors
Home appliance Motors
Industrial Motors
Motorcycle Motors
other DC Motors

Advantages:

*High remanence, high coercivity, high energy product, high performance and price ratio, easy to process various sizes and minimum specifications.
*It can be formed once, without secondary processing, and can be made into various complicated magnets Magnet and other part may form together in one step.
*Free choice of magnetizing direction-especially for multi-polar applications
*High dimensional accuracy-large quantity applications with minimum post-press machining.
*Thin-wall ring and complex shape magnets.
*High resistance to corrosion.

Why choose us?

Shorten the product design cycle and sample period,save the cost of project development
Integrated production, assembly facilities, increase the competitiveness of products
Provide OEM,ODM service,and provide ESI(early supplier involvement),CTP(customer trust operation),
KAM(key account management)

Need a Quote?

Please specify the following while ordering:

Shape, dimensions and tolerance

Magnetic specifications

Quantity (one time or repeating order)

Application / End use of the Magnet

Direction of Magnetization

Magnet acceptance inspection method

Magnetization requirements (magnetised) / (demagnetised)
