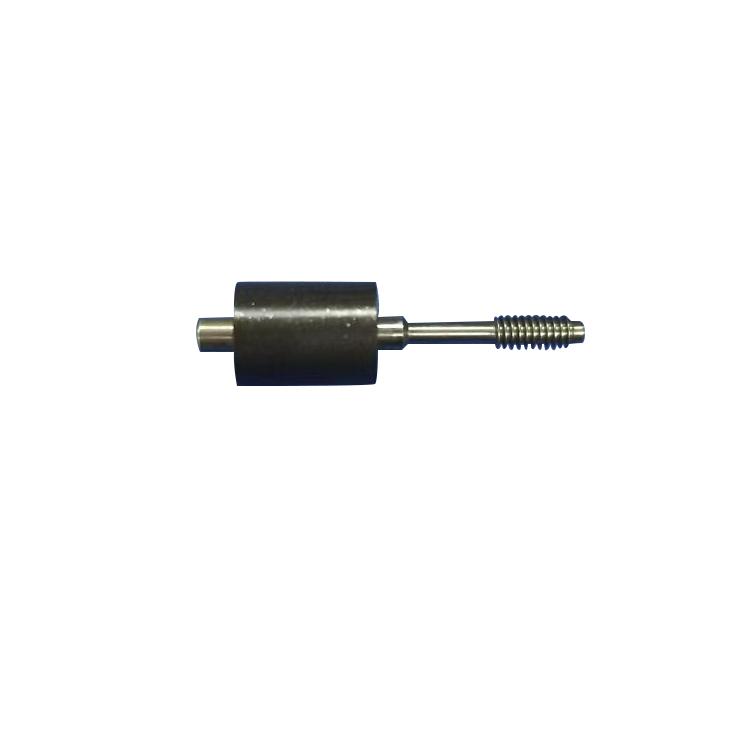

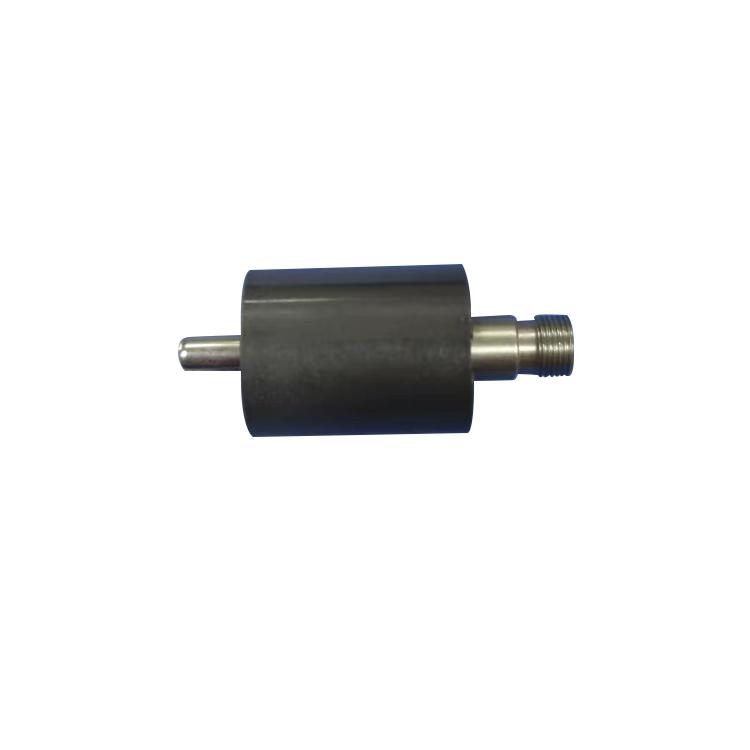

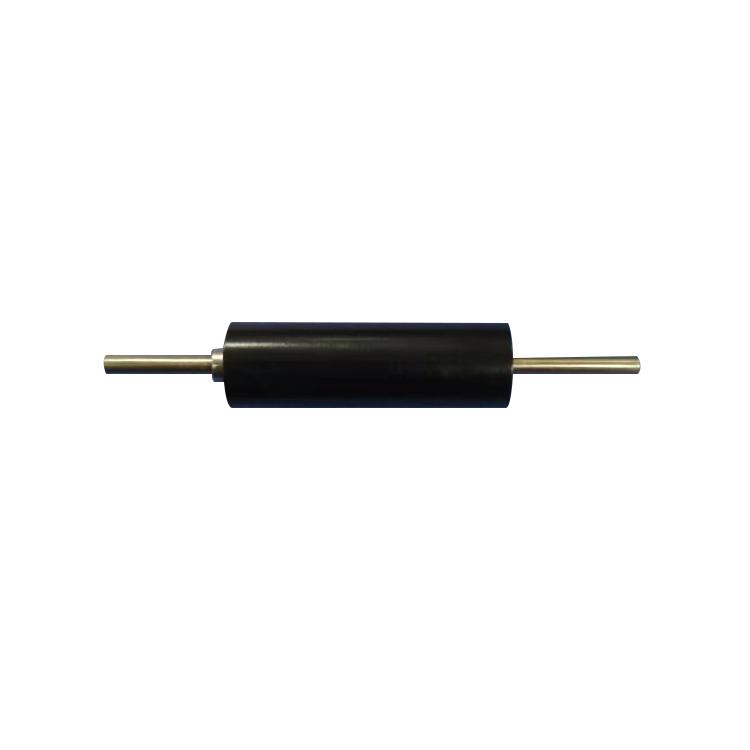

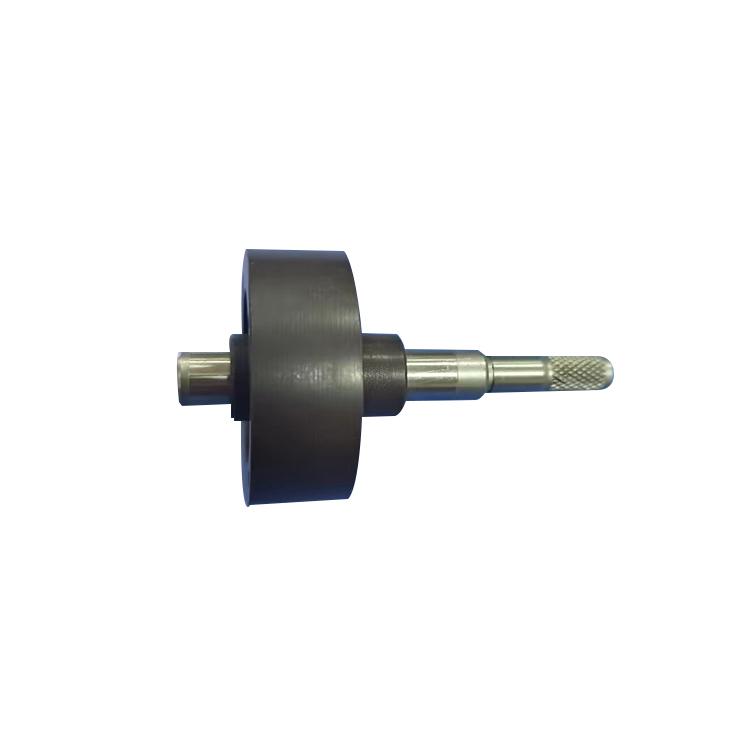

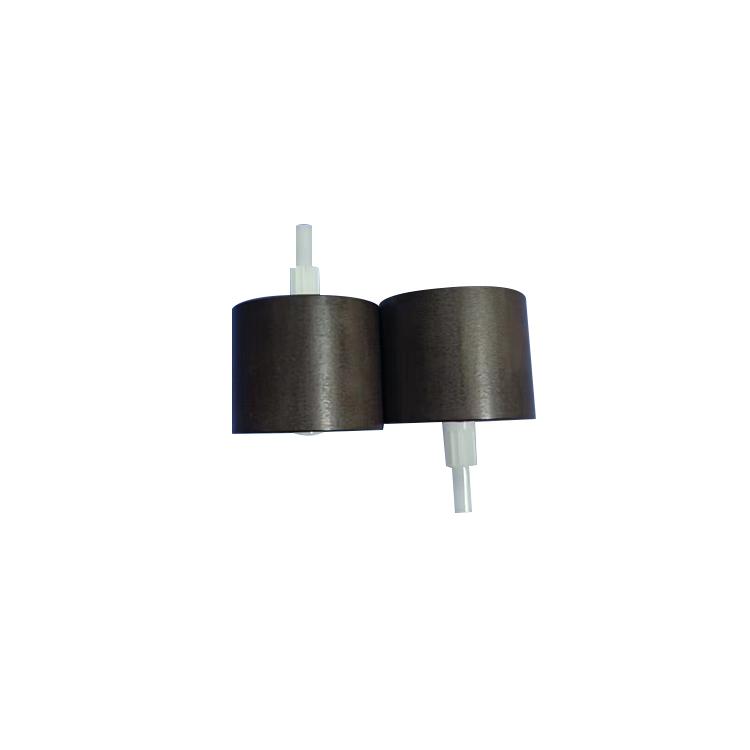

Custom Multi-Pole Permanent Injection Molded Ferrite Magnet for Rotor

Custom Multi-Pole Permanent Injection Molded Ferrite Magnet for Rotor

Injection Ferrite Magnet Injection Ferrite Magnet Injection Ferrite Magnet Injection Ferrite Magnet Injection Ferrite Magnet

Multi Pole Injection Ferrite Magnet


1.Material: PA6 Base resin+Ferrite Magnetic Powder


2.Dimensions: According to your requirements


3.Grade: MF-618,MF-620 and etc


4.Max Operating Temperature: -20°C to +15O°C


5.Magnetized: Axial,Diametrical or Multi-Poles


6.Advantage: High dimensional accuracy, good consistency, no follow-up processing, stable performance, shock resistance



inquiry Form
Product Detail

Physical Properties

Density: 3.3-3.88g/cm³ - Compaction
Tension Strength:75-100( MPa)
Flexural Strength :157-189( MPa)
Max. Operation Temperature:  -20 to 150 (℃) - Compaction
Hardness :118-120

Magnetic property of Bonded Ferrite Magnet

Relatively powerful products. Very high resistance to demagnetization. Low operating temperature (under -20 to 150°C).

Applications of Bonded Ferrite Magnet
1.Automobile Industry
2.Transmission motor of office equipments
3.IT Indurstry(HDD,ODD etc.)
4.Appliances motors(vacuum cleaner,washing motor etc)

5.POS system,Instrument


Manufacturing Technique - Compaction Bonded Neodymium Magnet

1.Material: Isotopic PA6 Base resin+Ferrite Magnetic Powder
2.Shape: Block,colum,arc,ring and so on.
3.Size Range: D1-D300 mm
4.Coating: Epoxy,Parylene,Others
5.Magnetization: Axial,Radial,Mutil-poles and so on.

6.Types: ring magnets 4 poles,6 pole magnet ring8 pole ring magnet

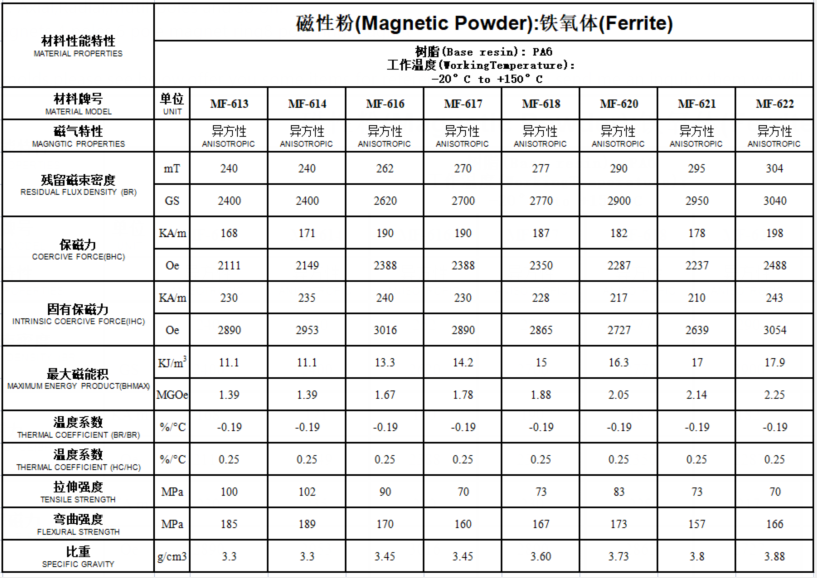

If you do not know what performance meets the requirements of your project you can refer to our parameter performance table
