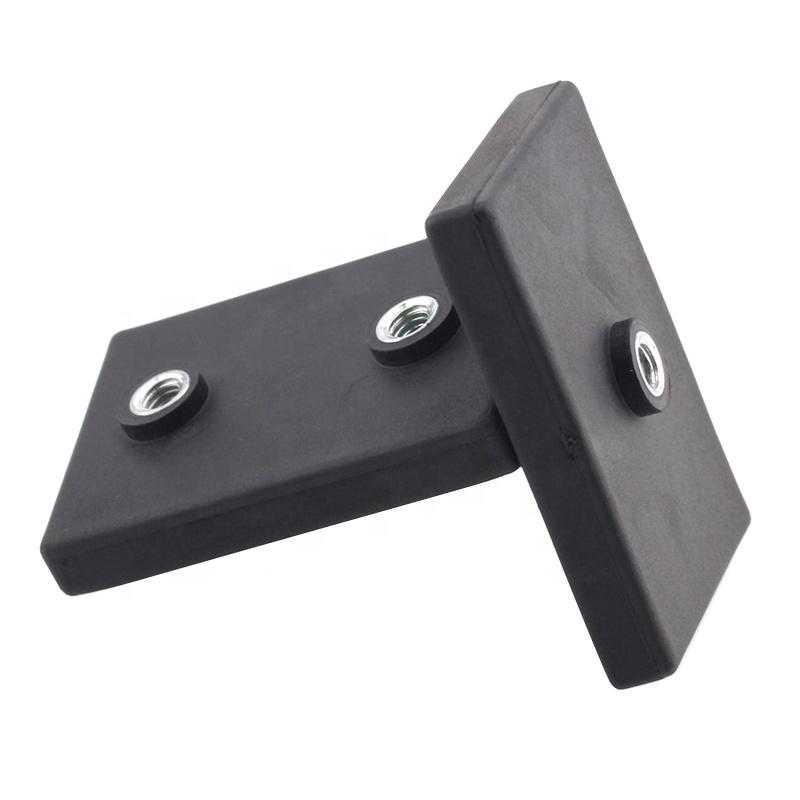

Rubber Coated Neodymium Block Magnet With internal thread

Rubber Coated Neodymium Block Magnet With internal thread

Block Magnet With internal thread
Application:
Industrial Magnet, Magnetic holder
Tolerance:
+/-0.1mm
Grade:
Magnet + Rubber
Delivery Time:
22-30 days
Product Name:
Block Rubber coated magnet 43*31*6 mm
Material:
NdFeB Magnet + Rubber Coated
Pull Force:
8.5 KG
Size:
-M4*1 or M4*2
Certification:
ISO9001,ISO14001,TS16949
inquiry Form
Product Detail

These Neodymium(NdFeB) rubber coated pot magnets have strength force.This design with rubber plastic coating can protect magnet no easy to be  chipped,corrosion and provide great slide resistance. See below items,which made with cylinder bore,which will easy to use bolt to mounting into wall,they are suitable for application in the surface might be easily scratched or damaged.



Block Rubber Coated


Block Rubber Coated2

Multipurpose Magnetic Materials Strong Rubber Coated Neodymium Magnets 66mm Rubber Coated Magnets D66 Rubber Magnet (2) Multipurpose Magnetic Materials Strong Rubber Coated Neodymium Magnets 66mm Rubber Coated Magnets Multipurpose Magnetic Materials Strong Rubber Coated Neodymium Magnets 66mm Rubber Coated Magnets






photobank (1).png



Our Advantage

1.we have various mold,D22MM,D43MM,D66MM,D88MM,D89.3MM are our popular size

2.we have our own engineer certre

3.pull force can reach 45kgs

4.with various type screw hole or thread M5,M4,M6,M8 and different length

If you have any requestion,please be free to contact us !!








Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

New Products
  • Neodymium Arc Magnet
    N35 custom neodymium arc magnets for motors
    Arc Neodymium Magnet Neodymium magnet (NdFeB), commonly known as "rare earth" magnet, is a high-performance permanent magnet made of neodymium, iron and boron alloys. They are real permanent magnets and will not lose their magnetism unless heated to a temperature exceeding the maximum operating temperature rating or their protective coating is damaged. Characteristic: -Energy products may exceed 50mgoe -Low corrosion resistance Applications: -automotive -electronics (sensors, speakers, scanners) -medical (scanners) -magnetic separators
    Read More
  • Alnico magnet
    Custom ring alnico 5 magnets
    Alnico Magnet: 1.Dimensions: According to your requirements 2.Grade: Alnico 5 , Alinico 6, Alnico 8, Alnico 9 and etc. 3.Max Operating Temperature: 450-550 degree celsius 4.Processing technique: Sintered and Cast 5.Magnetized: Diametrical / Axial
    Read More
  • Alnico magnet
    Alnico rare earth blocks factory alnico 8 bar magnet
    Customized Alnico Magnet 1.Dimensions: According to your requirements 2.Grade: Alnico 5 , Alinico 6, Alnico 8, Alnico 9 and etc. 3.Max Operating Temperature: 450-550 degree celsius 4.Processing technique: Sintered and Cast 5.Magnetized: Thickness,Width,Length
    Read More
  • Neodymium block magnet
    N35 8mm neodymium magnets with adhesive
    Block Neodymium Magnet 1.Dimensions: Customized / Produce according to your needs 2.Materials: NdFeB,Grade N35 to N52 (M,H,SH,UH,EH AH) 3.Plating/Coating: Nickel,Zinc,Epoxy and etc. 4.Magnetization direction: Through thickness,width,or length 5.Max operating temp.: 80 to 220 degrees celsius It can be very small block/cube,or it can be big block/bar and become a very powerful magnet.They are often used for industrial applications.
    Read More
  • Ferrite cow magnet
    hot sale low price ferrite cow stomach magnet
    Ferrite Cow Magnet 1. Material: Frerrite Magnet+Platsic 2. Dimensions: According to your requirements 3. Grade: Y30/Y35 4. Color: Black 5. Weight: 0.065KG
    Read More
  • laminated magnet
    12mm flat laminated neodymium magnets
    Laminated Magnet 1. Insulation layer thickness within 0.04mm. Insulation layers: 2-40 layers. 2. At normal temperature, the bonding strength of the insulation layer can reach more than 50Mpa. 3. The maximum operating temperature is 60-250 ℃. 4. Tolerance is within 0.05mm. 5. Each magnets are insulated from each other.
    Read More
  • laminated magnet
    N50 high powered laminated neodymium magnets
    Laminated Magnet 1. Insulation layer thickness within 0.04mm. 2. At normal temperature, the bonding strength of the insulation layer can reach more than 50Mpa. 3. The maximum operating temperature can reach 200 ℃. 4. Tolerance is within 0.05mm. 5. Each magnets are insulated from each other.
    Read More
  • laminated magnet
    12 pole laminated neodymium magnet manufacturer
    Laminated Magnet 1. Insulation layer thickness within 0.04mm. 2. At normal temperature, the bonding strength of the insulation layer can reach more than 50Mpa. 3. The maximum operating temperature can reach 200 ℃. 4. Tolerance is within 0.05mm. 5. Each magnets are insulated from each other.
    Read More
  • laminated magnet
    4 poles 5 poles 8poles laminated neodymium ndfeb magnet
    Laminated Magnet 1. Insulation layer thickness within 0.04mm. 2. At normal temperature, the bonding strength of the insulation layer can reach more than 50Mpa. 3. The maximum operating temperature can reach 200 ℃. 4. Tolerance is within 0.05mm. 5. Each magnets are insulated from each other.
    Read More
  • Magnetic wheel
    Crawling wheel ndfeb magnet magnetic wheel for robot on pipe moving
    Neodymium magnetic wheel/gear 1.Dimensions: Dia from 25mm to 160mm 2.Materials: NdFeB and Steel 3.Magnetization direction: Axial magnetized 4.Max operating temp.: 100 degrees celsius
    Read More
Related Products
D22mm rubber coated magnet
Rubber coated magnet with dia 22mm pull force 3.5kg
Rubber Coated Magnet With Pull 3.5 KG 1. Dimension: Dia 22 mm x H 6mm 2. Pull force : 3.5 KG 3. Connection type: Internal thread,Screwed bush,External thread 4. Thread type: M4,M5,M6,1/4-20 5. Product structure: NdFeB magnet + A3 steel + TPE rubber 6. Grade: N35 to N52 Neodymium magnet 7. Working Temp.: -40 to 80 degrees celsius 8. Customization:  Size/Screws/Color/Logo etc.
D31 mm rubber coating magnet
Hot sale rubber coated neodymium magnet pot Dia 31mm with external thread,internal thread,screwed bursh
Rubber Coated Magnet With Pull Force 7.5 KG 1. Dimension: Dia 31 mm x H 6 mm 2. Pull force : 7.5 KG 3. Connection type: Internal thread,Screwed bush,External thread 4. Thread type: M4,M5,M6,1/4-20 5. Product structure: NdFeB magnet + A3 steel + TPE rubber 6. Grade: N35 to N52 Neodymium magnet 7. Working Temp.: -40 to 80 degrees celsius 8. Customization:  Size/Screws/Color/Logo etc.
D36 mm rubber coated magnet
D36mm Rubber coating magnet External thread Internal thread Screwed bush Pull force 8 kg
Rubber Coated Magnet With Pull Force 8 KG 1. Dimension: Dia 36 mm x H 7 mm 2. Pull force : 8 KG 3. Connection type: Internal thread,Screwed bush,External thread 4. Thread type: M4,M5,M6,1/4-20 5. Product structure: NdFeB magnet + A3 steel + TPE rubber 6. Grade: N35 to N52 Neodymium magnet 7. Working Temp.: -40 to 80 degrees celsius 8. Customization:  Size/Screws/Color/Logo etc.
D43 mm rubber coated magnet
D43mm Strong rubber coated magnet N52 magnets rubber coated NdFeB mounting magnets Pull force 10 KG
Rubber Coated Magnet With Pull Force 10 KG 1. Dimension: Dia 43 mm x H 6 mm 2. Pull force : 10 KG 3. Connection type: Internal thread,Screwed bush,External thread 4. Thread type: M4,M5,M6,1/4-20 5. Product structure: NdFeB magnet + A3 steel + TPE rubber 6. Grade: N35 to N52 Neodymium magnet 7. Working Temp.: -40 to 80 degrees celsius 8. Customization:  Size/Screws/Color/Logo etc.
D66 mm rubber coated magnet
D66mm Rubber coated pot magnets Strong magnets with rubber coating Pull force 22KG
Rubber Coated Magnet With Pull Force 22 KG 1. Dimension: Dia 66 mm x H 8 mm 2. Pull force : 22 KG 3. Connection type: Internal thread,Screwed bush,External thread 4. Thread type: M4,M5,M6,M8,M10,1/4-20 5. Product structure: NdFeB magnet + A3 steel + TPE rubber 6. Grade: N35 to N52 Neodymium magnet 7. Working Temp.: -40 to 80 degrees celsius 8. Customization:  Size/Screws/Color/Logo etc.
D88 mm rubber coated magnet
Strong round rubber coated magnet D88 mm rubber coat pot magnet N52 magnet with rubber coating
Rubber Coated Magnet With Pull Force 45 KG 1. Dimension: Dia 88 mm x H 8 mm 2. Pull force : 45 KG 3. Connection type: Internal thread,Screwed bush,External thread 4. Thread type: M4,M5,M6,M8,M10,1/4-20 5. Product structure: NdFeB magnet + A3 steel + TPE rubber 6. Grade: N35 to N52 Neodymium magnet 7. Working Temp.: -40 to 80 degrees celsius 8. Customization:  Size/Screws/Color/Logo etc.
Rectangular rubber coated magnet
Block Rubber coated magnet 43*31*6 mm Rectangular rubber coated neodymium magnets Rubber pot magnet
Rectangular Rubber Coated Magnet With Pull Force 8.5 KG 1. Dimension: L 43 x W 31 x H 6.9 mm 2. Pull force : 8.5 KG 3. Connection type: Internal thread,Screwed bush,External thread 4. Thread type: One or two thread M4 bush thread hole 5. Product structure: NdFeB magnet + A3 steel + TPE rubber 6. Grade: N35 to N52 Neodymium magnet 7. Working Temp.: -40 to 80 degrees celsius 8. Customization:  Size/Screws/Color/Logo etc.
Car wrap magnet
Rubber coated magnet with handle Car wrap magnet Rubber magnet disc
Rubber Coated Magnet With Handle 1. Dimension: Dia 43, 66, 88 mm 2. Pull force : 8.5 to 45 KG 3. Connection type: Internal thread,Screwed bush 4. Thread type: M4,M5,M6,M8,M10 5. Product structure: NdFeB magnet + A3 steel + TPE rubber 6. Grade: N35 to N52 Neodymium magnet 7. Working Temp.: -40 to 80 degrees celsius 8. Customization:  Size/Screws/Color/Logo etc.
