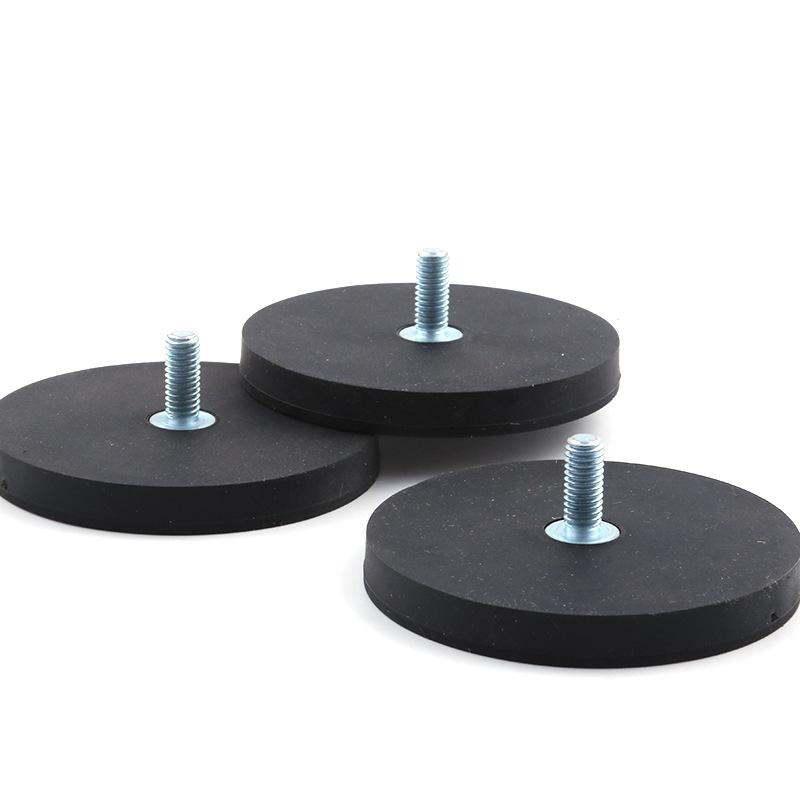

Best used in a shear position, rubber-coated pot magnets have a superior slide resistance over regular magnets due to the increased friction generated between a rubber and smooth steel surface. Corrosion is the most common reason for a failing magnet. By adding a rubber-coating to a magnet you increase its resistance to corrosion and what’s more they are safe to use on easily marked surfaces without scratching. Typical applications include suspending outdoor cameras, heavy-duty gate and door latches, hanging signage and mounting sensors.
We HAVEcustomized services: Shape and dimension requirements Material and coating requirements Processing according to design
drawings Requirements for magnetization direction Magnet grade requirements
Arc Neodymium Magnet Neodymium magnet (NdFeB), commonly known as "rare earth" magnet, is a high-performance permanent magnet made of neodymium, iron and boron alloys. They are real permanent magnets and will not lose their magnetism unless heated to a temperature exceeding the maximum operating temperature rating or their protective coating is damaged. Characteristic: -Energy products may exceed 50mgoe -Low corrosion resistance Applications: -automotive -electronics (sensors, speakers, scanners) -medical (scanners) -magnetic separators
Block Neodymium Magnet 1.Dimensions: Customized / Produce according to your needs 2.Materials: NdFeB,Grade N35 to N52 (M,H,SH,UH,EH AH) 3.Plating/Coating: Nickel,Zinc,Epoxy and etc. 4.Magnetization direction: Through thickness,width,or length 5.Max operating temp.: 80 to 220 degrees celsius It can be very small block/cube,or it can be big block/bar and become a very powerful magnet.They are often used for industrial applications.
Laminated Magnet 1. Insulation layer thickness within 0.04mm. Insulation layers: 2-40 layers. 2. At normal temperature, the bonding strength of the insulation layer can reach more than 50Mpa. 3. The maximum operating temperature is 60-250 ℃. 4. Tolerance is within 0.05mm. 5. Each magnets are insulated from each other.
Laminated Magnet 1. Insulation layer thickness within 0.04mm. 2. At normal temperature, the bonding strength of the insulation layer can reach more than 50Mpa. 3. The maximum operating temperature can reach 200 ℃. 4. Tolerance is within 0.05mm. 5. Each magnets are insulated from each other.
Laminated Magnet 1. Insulation layer thickness within 0.04mm. 2. At normal temperature, the bonding strength of the insulation layer can reach more than 50Mpa. 3. The maximum operating temperature can reach 200 ℃. 4. Tolerance is within 0.05mm. 5. Each magnets are insulated from each other.
Laminated Magnet 1. Insulation layer thickness within 0.04mm. 2. At normal temperature, the bonding strength of the insulation layer can reach more than 50Mpa. 3. The maximum operating temperature can reach 200 ℃. 4. Tolerance is within 0.05mm. 5. Each magnets are insulated from each other.
Neodymium magnetic wheel/gear 1.Dimensions: Dia from 25mm to 160mm 2.Materials: NdFeB and Steel 3.Magnetization direction: Axial magnetized 4.Max operating temp.: 100 degrees celsius
Rubber Coated Magnet With Pull Force 7.5 KG 1. Dimension: Dia 31 mm x H 6 mm 2. Pull force : 7.5 KG 3. Connection type: Internal thread,Screwed bush,External thread 4. Thread type: M4,M5,M6,1/4-20 5. Product structure: NdFeB magnet + A3 steel + TPE rubber 6. Grade: N35 to N52 Neodymium magnet 7. Working Temp.: -40 to 80 degrees celsius 8. Customization: Size/Screws/Color/Logo etc.
Rubber Coated Magnet With Pull Force 8 KG 1. Dimension: Dia 36 mm x H 7 mm 2. Pull force : 8 KG 3. Connection type: Internal thread,Screwed bush,External thread 4. Thread type: M4,M5,M6,1/4-20 5. Product structure: NdFeB magnet + A3 steel + TPE rubber 6. Grade: N35 to N52 Neodymium magnet 7. Working Temp.: -40 to 80 degrees celsius 8. Customization: Size/Screws/Color/Logo etc.
Rubber Coated Magnet With Pull Force 10 KG 1. Dimension: Dia 43 mm x H 6 mm 2. Pull force : 10 KG 3. Connection type: Internal thread,Screwed bush,External thread 4. Thread type: M4,M5,M6,1/4-20 5. Product structure: NdFeB magnet + A3 steel + TPE rubber 6. Grade: N35 to N52 Neodymium magnet 7. Working Temp.: -40 to 80 degrees celsius 8. Customization: Size/Screws/Color/Logo etc.
Rubber Coated Magnet With Pull Force 22 KG 1. Dimension: Dia 66 mm x H 8 mm 2. Pull force : 22 KG 3. Connection type: Internal thread,Screwed bush,External thread 4. Thread type: M4,M5,M6,M8,M10,1/4-20 5. Product structure: NdFeB magnet + A3 steel + TPE rubber 6. Grade: N35 to N52 Neodymium magnet 7. Working Temp.: -40 to 80 degrees celsius 8. Customization: Size/Screws/Color/Logo etc.
Rubber Coated Magnet With Pull Force 45 KG 1. Dimension: Dia 88 mm x H 8 mm 2. Pull force : 45 KG 3. Connection type: Internal thread,Screwed bush,External thread 4. Thread type: M4,M5,M6,M8,M10,1/4-20 5. Product structure: NdFeB magnet + A3 steel + TPE rubber 6. Grade: N35 to N52 Neodymium magnet 7. Working Temp.: -40 to 80 degrees celsius 8. Customization: Size/Screws/Color/Logo etc.
Rectangular Rubber Coated Magnet With Pull Force 8.5 KG 1. Dimension: L 43 x W 31 x H 6.9 mm 2. Pull force : 8.5 KG 3. Connection type: Internal thread,Screwed bush,External thread 4. Thread type: One or two thread M4 bush thread hole 5. Product structure: NdFeB magnet + A3 steel + TPE rubber 6. Grade: N35 to N52 Neodymium magnet 7. Working Temp.: -40 to 80 degrees celsius 8. Customization: Size/Screws/Color/Logo etc.
