D43mm Strong rubber coated magnet N52 magnets rubber coated NdFeB mounting magnets Pull force 10 KG

Rubber Coated Magnet With Pull Force 10 KG


1. Dimension: Dia 43 mm x H 6 mm


2. Pull force : 10 KG


3. Connection type: Internal thread,Screwed bush,External thread


4. Thread type: M4,M5,M6,1/4-20


5. Product structure: NdFeB magnet + A3 steel + TPE rubber


6. Grade: N35 to N52 Neodymium magnet


7. Working Temp.: -40 to 80 degrees celsius


8. Customization:  Size/Screws/Color/Logo etc.

Product Detail

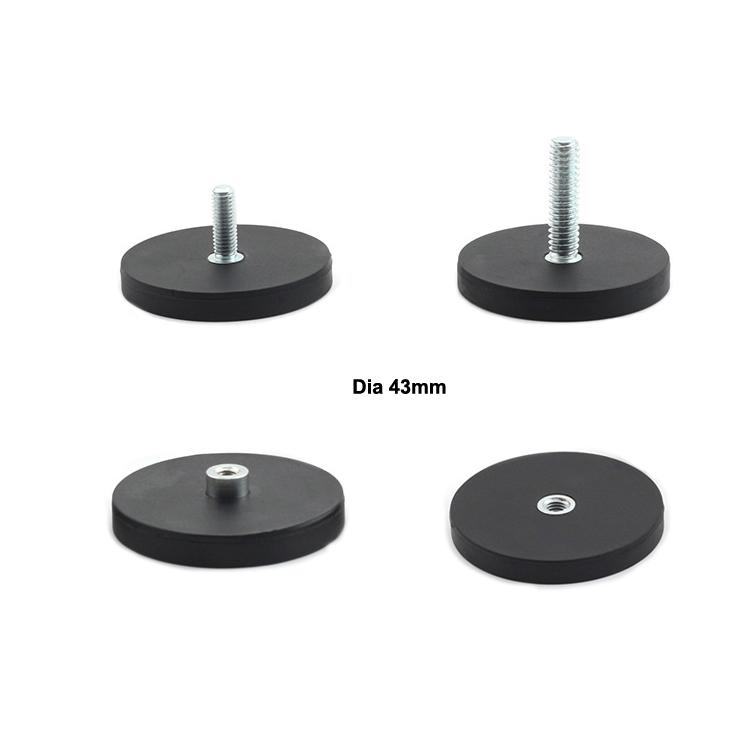

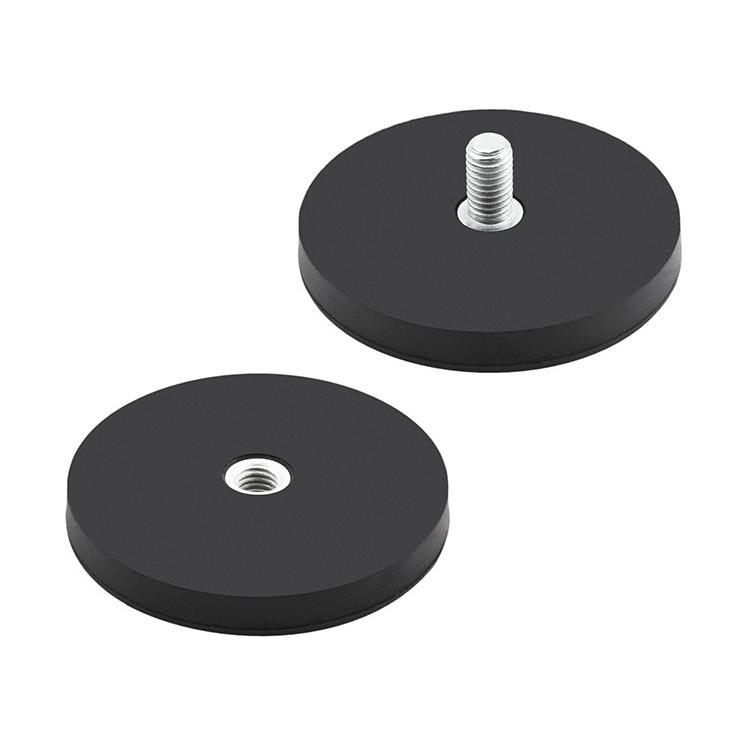

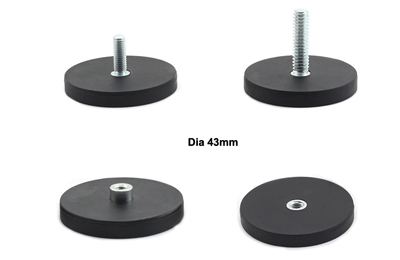

Rubber Coated Magnet,Dia 43 mm x H 6 mm,Pull Force 10 kg


China's leading supplier of magnetic materials

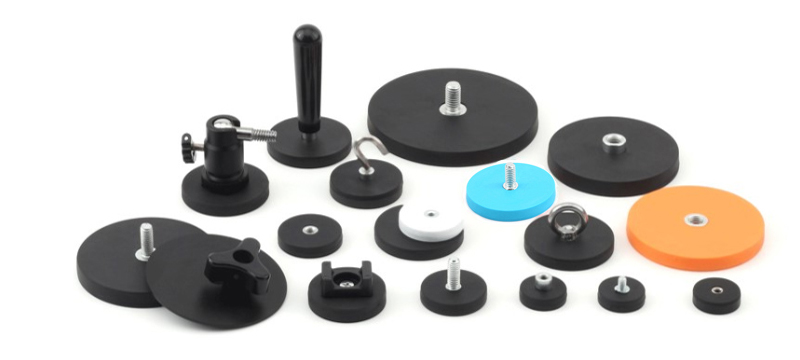

There are many type and sizes of rubber coated magnets available

Click here to download PDF catalog of rubber coat magnet

Application of rubber coated magnet

Rubber coated magnets are mainly used within the industrial area and primarily for the oil,wind and gas industry. Other applications such as for mounting of car roof spotlight,advertising light box,loudspeaker,wedding car flower,camera,fixture on vehicles, etc. are also common. It's suitable for both indoor and outdoor applications.


Advantage of rubber coated magnet

1.Rubber coated pot magnet give great durability and high friction to keep them from slipping on surfaces.

2.Thanks to the strong rubber material these magnets are highly suitable for varnished and painted surfaces.Keep from scratching surface of car,truck,delicate surfaces etc.

3.No more drifting holes all over your lovely ride, lights can be installed.

4.It can protect against the liquids, moisture,corrosion and chipping


Services avaliable

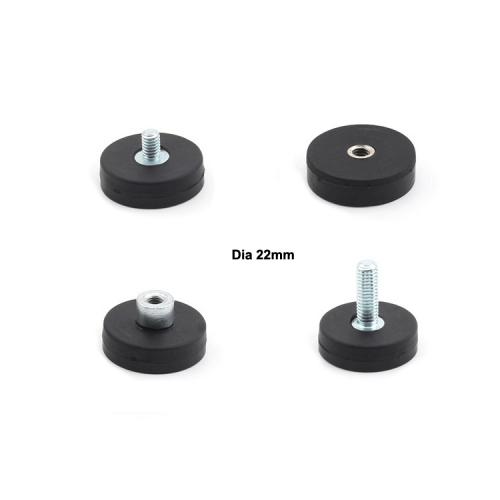

1. Custom sizes : Dia 22, 31, 36, 43, 66, 88 mm

2. Custom thread type : M3,M4,M5,M6,M8,M10,1/4-20

3. Custom colors : Red, Orange, Yellow, Blue, Green, Purple, Black, White

4. Custom Logos : Protruding logo, Gravure logo, Silk screen logo

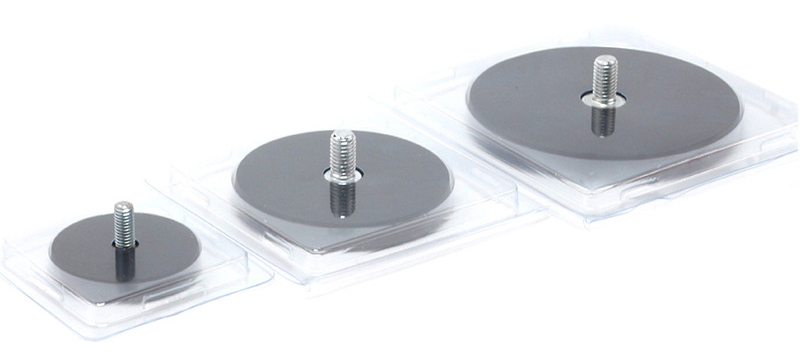

5. Product packaging : Individual PVC package
