Neodymium Magnetic Hook With Fixation Hook

Strong NeFeB Magnetic Hook


1.Dimensions: Dia from 10 mm to 80 mm


2.Materials: NdFeB,Grade N42

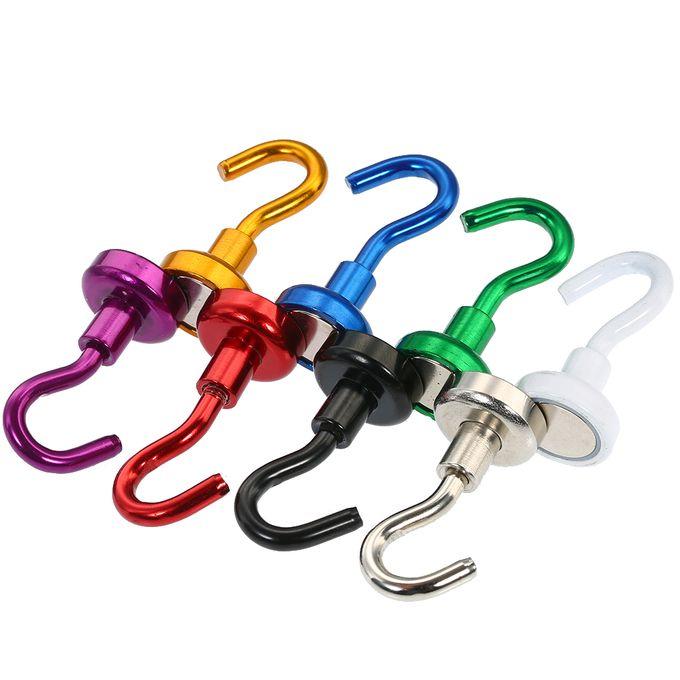

3.Plating/Coating: Zinc,Nickel,Epoxy or Color painted.


4.Magnetization direction: Axial magnetized


5.Max operating temp.: 80 degrees celsius

Product Detail

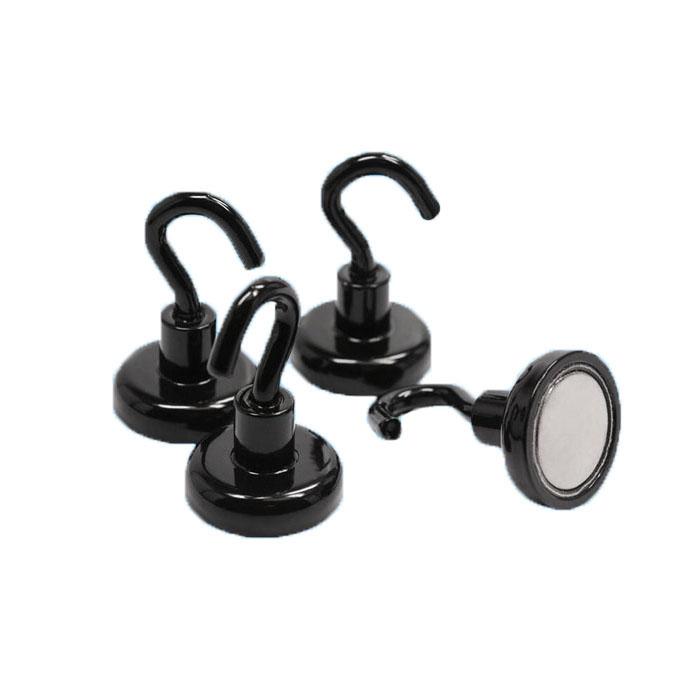

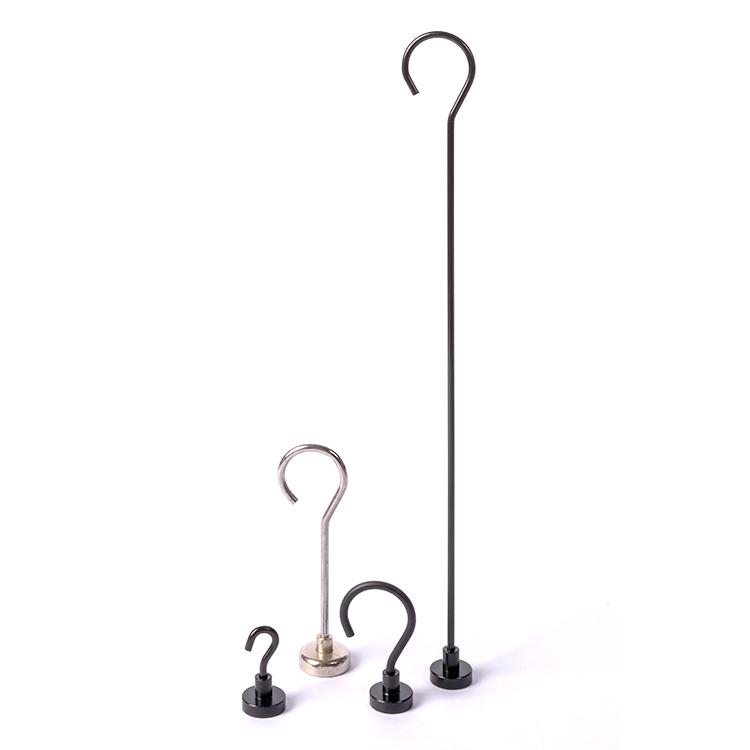

Neodymium Magnetic Hook - Fixation Hook
If you hooked on staying organize your workspace for safety and efficiency,these lightweight magnetic fixation pull hook are for you.they are easy to attach items to all metal surfaces or other ferromagnetic surfaces,just like refriderator,cabinet,tabels,beams,metal studs,workbenches,toolboxes and so on.Thye are good to use at home,workshop,office,retail shop,warehouse or other filed to save space and organize your work.But they can’t to stick at brass,aluminum,copper or lead surface.


1.Standard size of NdFeB magnetic hook with fixation hook

Model D(mm) d(mm) M h(mm) h1(mm) H(mm) Weight(g) Breakaway(kg)
KM-SNE10 10 6 M3 5 12.6 31.5 5 1.5
KM-SNE12 12 6 M3 5 12.6 31.5 7 2
KM-SNE16 16 6.5 M4 5 13.5 35.7 12 8
KM-SNE20 20 6.5 M4 7 15 37.8 21 12
KM-SNE25 25 7.5 M5 8 17 44.9 33 25
KM-SNE32 32 10 M6 8 18 47.8 54 34
KM-SNE36 36 10 M6 8 18.5 49.8 64 50
KM-SNE42 42 10 M6 8.6 18.8 50 93 72
KM-LNE48 48 12 M8 11 24 61 150 81
KM-LNE55 55 12 M8 12 28 63 231 95
KM-LNE60 60 12 M8 15 28 66 283 160
KM-LNE70 70 17 M10 17 34 84 531 200
KM-LNE75 75 17 M10 18 35 85 555 270
KM-LNE80 80 17 M10 18 35 85 744 300

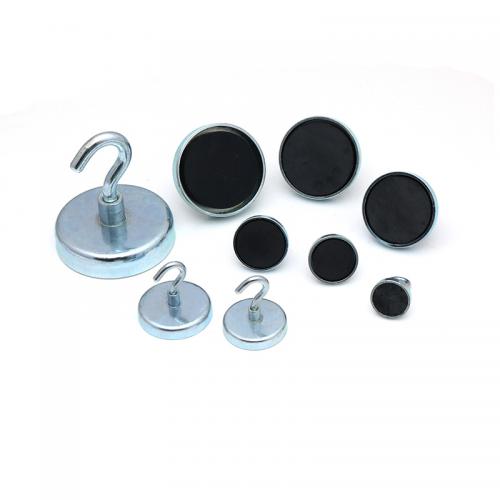

2.The main types of pot neodymium magnets

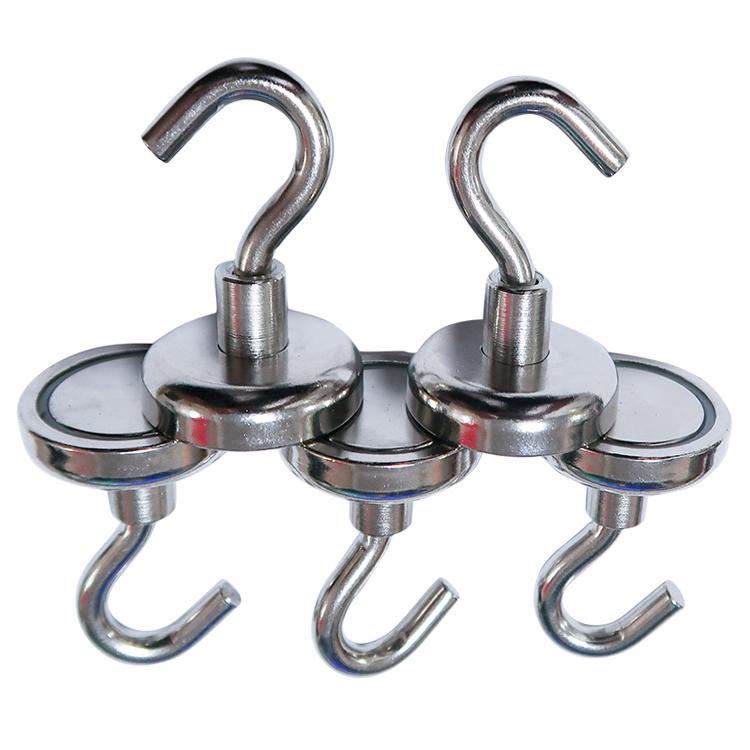

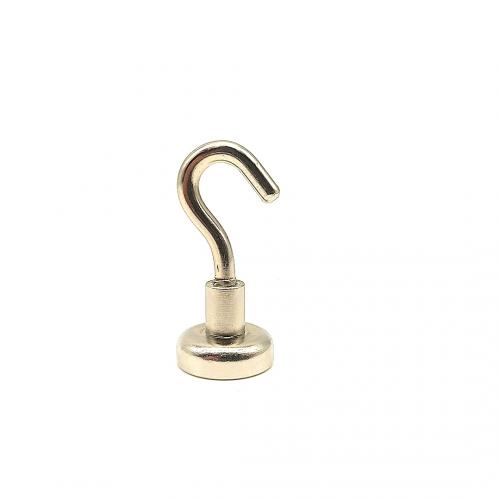

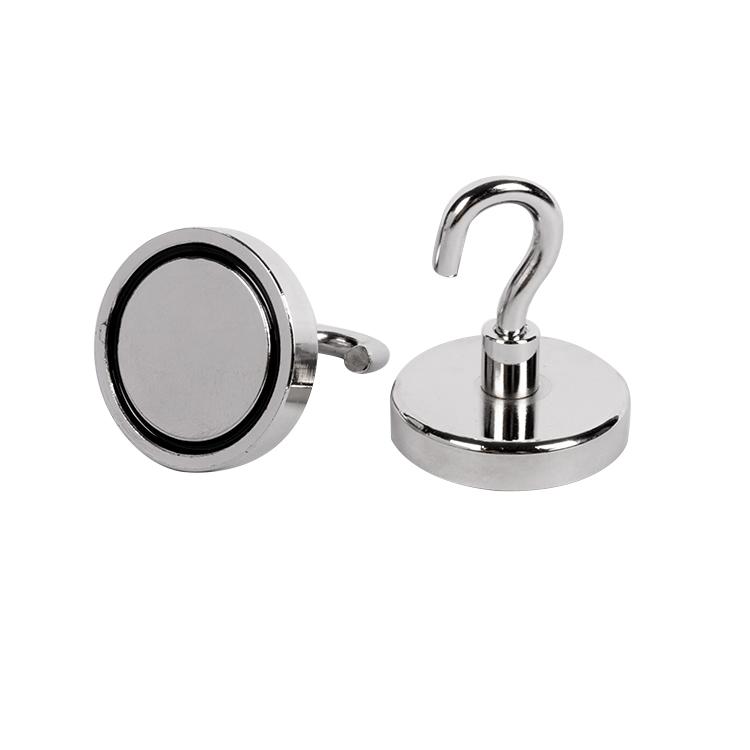

1. Steel case NdFeB magnetic hook with fixation hook

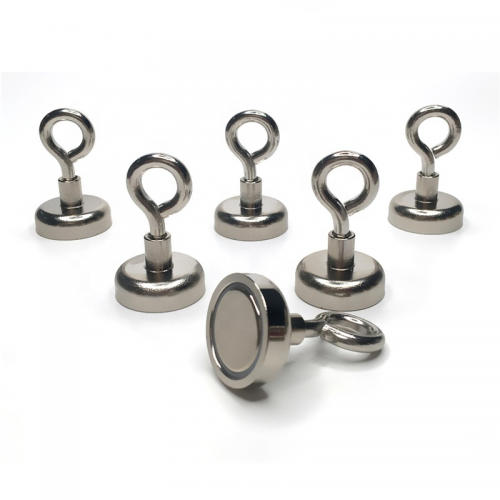

2. Steel case NdFeB magnetic hook with eyelet hook

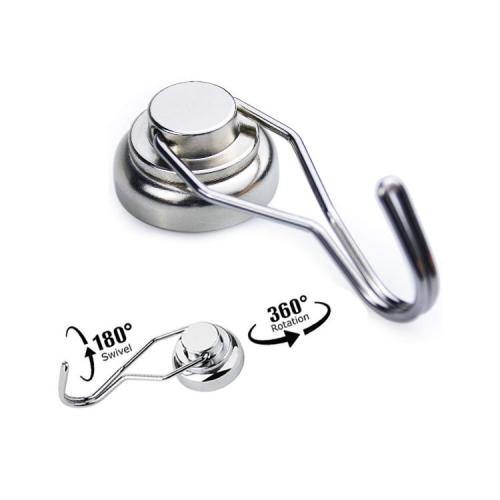

3. Steel case NdFeB magnetic hook with swivel hook

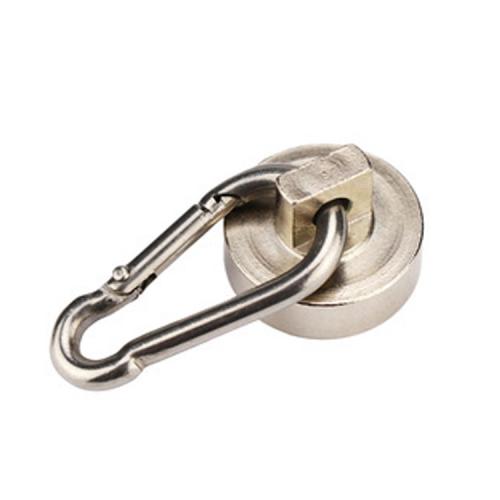

4. Steel case NdFeB magnetic hook with carabiner

5. Steel case Ferrite magnetic hook

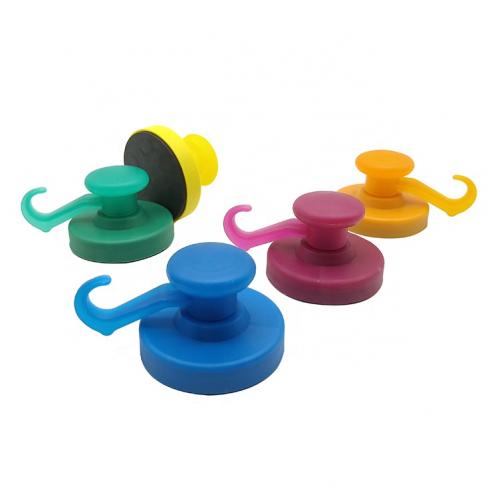

6. Plastic case NdFeB magnetic hook with swivel hook and rubber coated (360 dge.)


3.Grade of NdfeB Magnet:

If your application is at room temperature only,the N series is the best choice,with a max operating temperature 80 degrees Celsius. In the N series,the N55 grade has strongest magnetic force,and is also the most expensive. Generally speaking,the N35 grade is relatively cost-effective and also have strong magnetic force.But which grade to choose depends on your pursuit of magnetic force or say application.

The higher the temperature of resistance of the magnet,the more expensive it is.For example,N35 grade and N35M grade have the same magnetic force,but the max opearting temp. of N35M is 100 degrees Celsuis

Please click here to check the properities of sintered neodymium magnet.
