Strong NeFeB Magnetic Hook With EyeBolt
1.Dimensions: Dia from 10 mm to 120 mm
2.Materials: NdFeB,Grade N42
3.Plating/Coating: Zinc,Nickel,Epoxy or Color painted.
4.Magnetization direction: Axial magnetized
5.Max operating temp.: 80 degrees Celsius

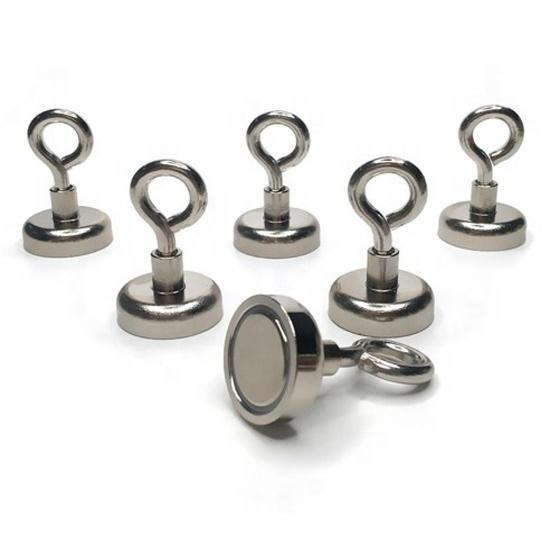

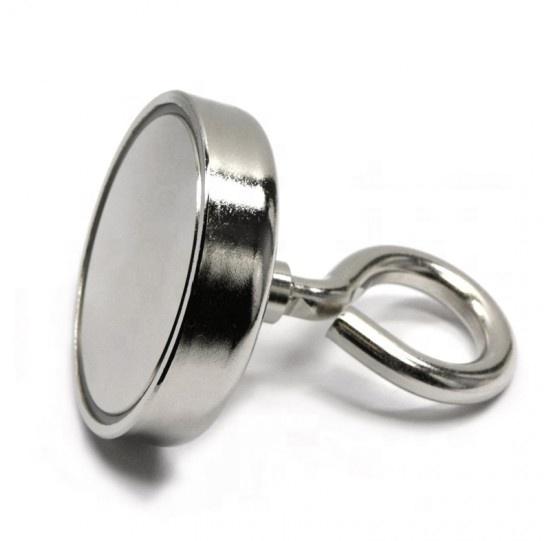

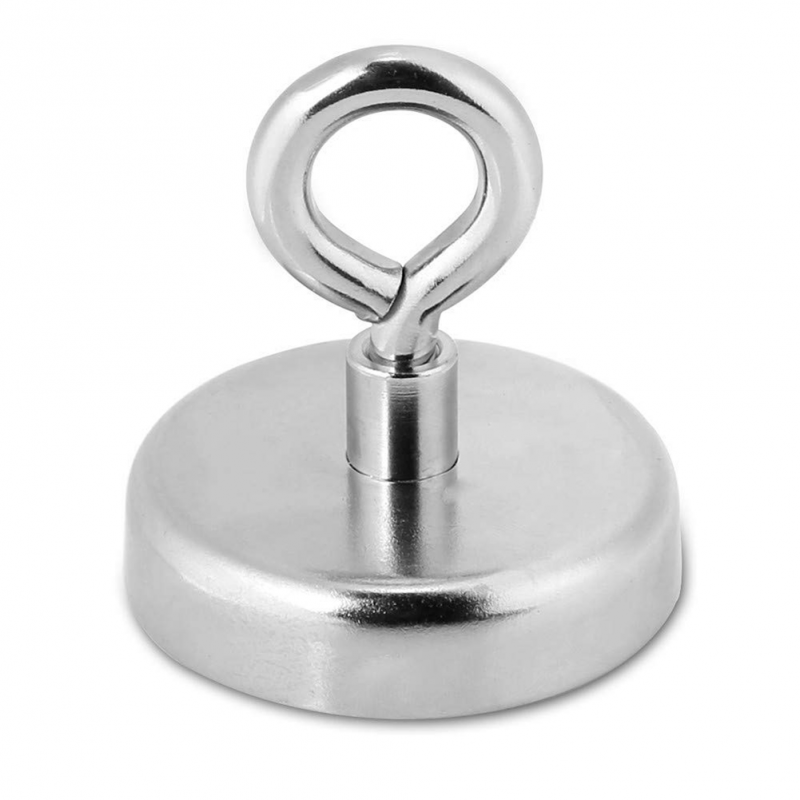

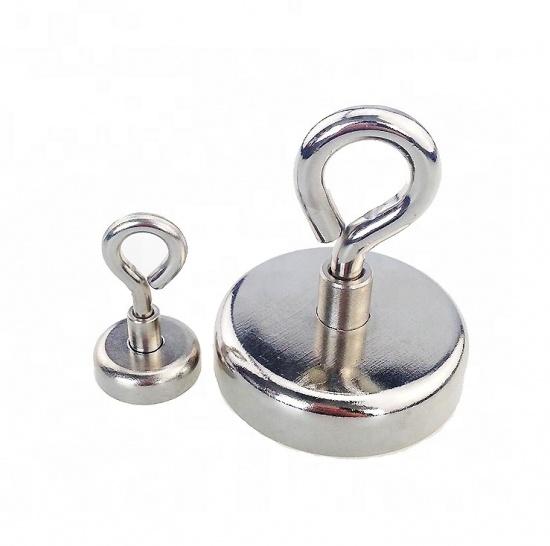

Neodymium Magnetic Hook - Eyelet Hook
If you hooked on staying organize your workspace for safety and efficiency,these lightweight magnetic eyelet pull hook are for you.they are easy to attach items to all metal surfaces or other ferromagnetic surfaces,just like refriderator,cabinet,tabels,beams,metal studs,workbenches,toolboxes and so on.Thye are good to use at home,workshop,office,retail shop,warehouse or other filed to save space and organize your work.And they can use to hang cable too.But they can’t to stick at brass,aluminum,copper or lead surface.
1.Standard size of NdFeB magnetic hook with eyebolt
Model | D(mm) | d(mm) | M | h(mm) | h1(mm) | H(mm) | Weight(g) | Breakaway(kg) |
KM-SNF10 | 10 | 6 | M3 | 5 | 12.6 | 31.5 | 5 | 1.5 |
KM-SNF12 | 12 | 6 | M3 | 5 | 12.6 | 31.5 | 7 | 2 |
KM-SNF16 | 16 | 6.5 | M4 | 5 | 13.5 | 35.7 | 12 | 8 |
KM-SNF20 | 20 | 6.5 | M4 | 7 | 15 | 37.8 | 21 | 12 |
KM-SNF25 | 25 | 7.5 | M5 | 8 | 17 | 44.9 | 33 | 25 |
KM-SNF32 | 32 | 10 | M6 | 8 | 18 | 47.8 | 54 | 34 |
KM-SNF36 | 36 | 10 | M6 | 8 | 18.5 | 49.8 | 64 | 50 |
KM-SNF42 | 42 | 10 | M6 | 8.6 | 18.8 | 50 | 93 | 72 |
KM-LNF48 | 48 | 12 | M8 | 11 | 24 | 61 | 150 | 81 |
KM-LNF55 | 55 | 12 | M8 | 12 | 28 | 63 | 231 | 95 |
KM-LNF60 | 60 | 12 | M8 | 15 | 28 | 66 | 283 | 160 |
KM-LNF70 | 70 | 17 | M10 | 17 | 34 | 84 | 531 | 200 |
KM-LNF75 | 75 | 17 | M10 | 18 | 35 | 85 | 555 | 270 |
KM-LNF80 | 80 | 17 | M10 | 18 | 35 | 85 | 744 | 300 |
KM-LNF90 | 90 | 17 | M10 | 18 | 35 | 85 | 904 | 360 |
KM-LNF120 | 120 | 22 | M12 | 18 | 40 | 90 | 1520 | 480 |
2.The main types of pot neodymium magnets
1. Steel case NdFeB magnetic hook with fixation hook
2. Steel case NdFeB magnetic hook with eyelet hook
3. Steel case NdFeB magnetic hook with swivel hook
4. Steel case NdFeB magnetic hook with carabiner
5. Steel case Ferrite magnetic hook
6. Plastic case NdFeB magnetic hook with swivel hook and rubber coated (360 dge.)
3.Grade of NdfeB Magnet:
If your application is at room temperature only,the N series is the best choice,with a max operating temperature 80 degrees Celsius. In the N series,the N55 grade has strongest magnetic force,and is also the most expensive. Generally speaking,the N35 grade is relatively cost-effective and also have strong magnetic force.But which grade to choose depends on your pursuit of magnetic force or say application.
The higher the temperature of resistance of the magnet,the more expensive it is.For example,N35 grade and N35M grade have the same magnetic force,but the max opearting temp. of N35M is 100 degrees Celsuis
Please click here to check the properities of sintered neodymium magnet.
