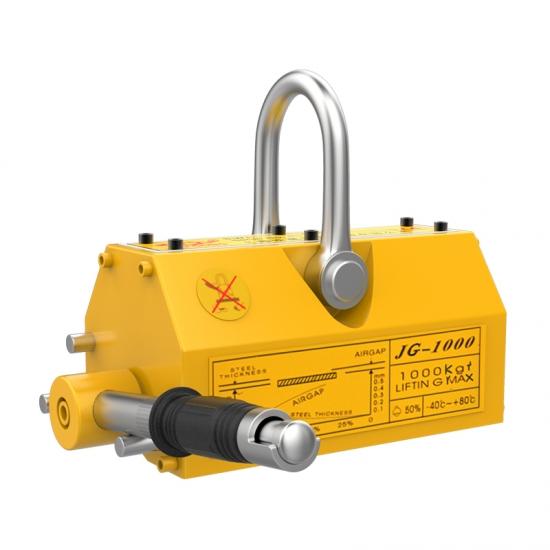

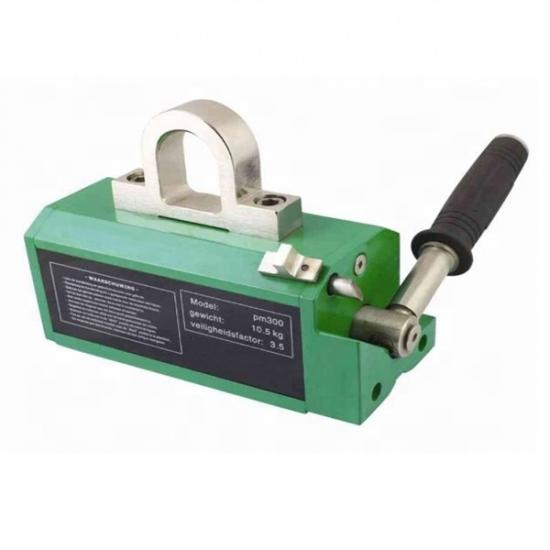

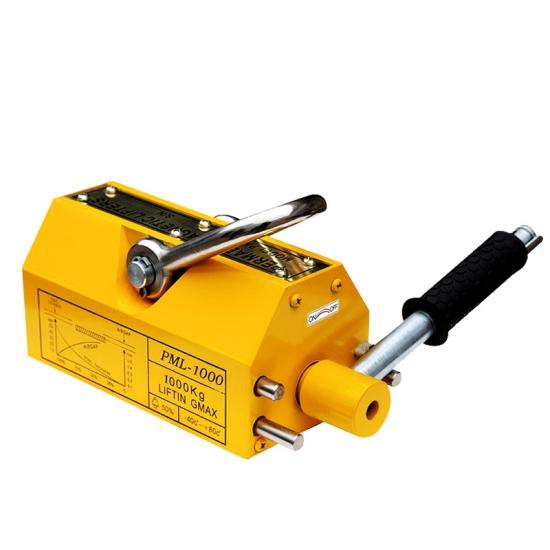

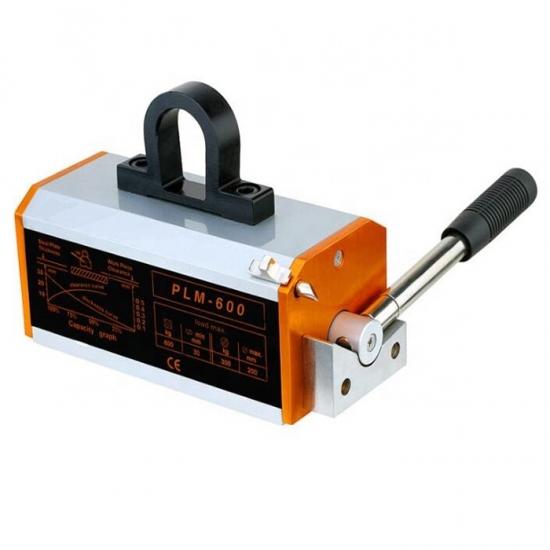

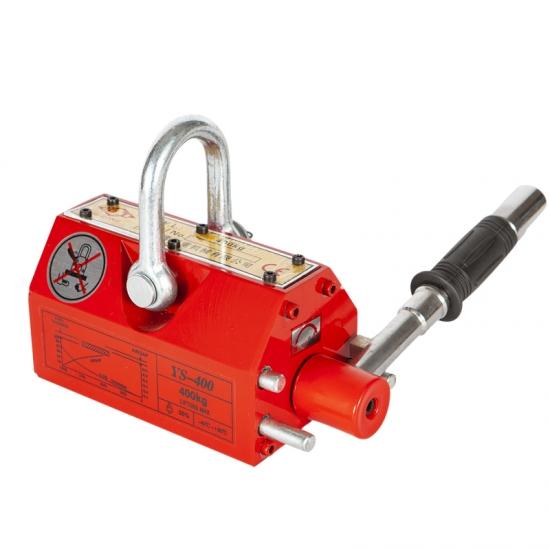

Manual Permanent Magnetic Lifter

Manual lifting magnets

1.Lifting Capacity Range From 100kgs from 3000kgs

2.Automatic Permanent Magnetic Lifter for optional

3.Different color as customized

inquiry Form

Product Detail

Product Detail

The main uses and characteristics

Application: Widely used in machining and mould processing industry

Features
1. Using high-performance permanent magnetic materials, with strong magnetic force, unique circuit design, remanence almost zero.
2. High safety factor, maximal magnetic force is 3.5 times of rated lifting capacity.
3. Handle switches with safety button, easy for Single- hand operation more safety and convenience.
4. "V" style design at the bottom of lifter, can lift round steel and steel plate.
5.Without electricity, magnetic force permanent, more safety in using, and can be operated in the field.

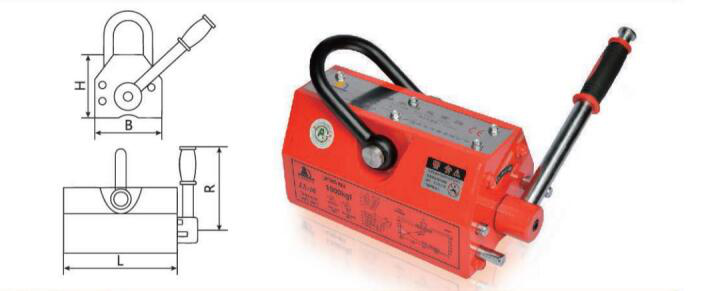

Model	Rated Lifting Capacity （Kgs）		Shape Size (mm)				Test Max Pull Off Force (kg)	Weight (kg)
	Steel Plate	Round Steel	L	B	H	R
KMLS1-0.1	100	45	94	72	78	145	350	3.2
KMLS1-0.2	200	90	146	72	81	145	750	5.4
KMLS1-0.4	400	180	168	94	106	178	1250	11
KMLS1-0.6	600	270	218	116	116	225	2100	20
KMLS1-1	1000	450	272	145	145	295	3500	40
KMLS1-1.5	1500	675	342	145	145	295	5000	48
KMLS1-2	2000	900	388	160	170	365	6000	74
KMLS1-3	3000	1350	460	185	185	425	9000	105
KMLS1-5	5000	/	568	250	255	900	15000	248
KMLS1-10	10000	/	586	567	308	750	30000	750

For more details or specific requirement,Please contact our specialist.
