– Power generator, wind turbine
– Hold metal pieces for machining
– Separation of ferrous materials
– Cases when magnetic field is required across a huge gap
– Science projects or experiment
– Magnetic art/sculptures
– Magic Routine
– Simply to hold and behold the awesomeness of such great power
Precautions
This magnet is not a toy, it will cause serious damage and injury if proper attention and care are not observed.
This magnet may cause damage/disturbance to some equipment that contains magnetic or ferrous material including but not limited
to: watches, smartphones, speakers, earphones, compasses, pacemakers, electronic devices, storage mediums, credit cards, etc.
Do not pass this magnet to anyone who has not read and fully understood the nature, risks, and dangers of neodymium magnets.
Be extra careful of ferrous metal objects that may suddenly jump towards the magnet or vice versa.
Always store this magnet in a safe and stable place away from reach of children or pet
To ensure you get the most accurate quote, please give us the following details:
1. Grade requirements
2. Magnetization direction
3. Working temperature
4. Quantity requirements
5. Whether coating is required
6. Size requirements

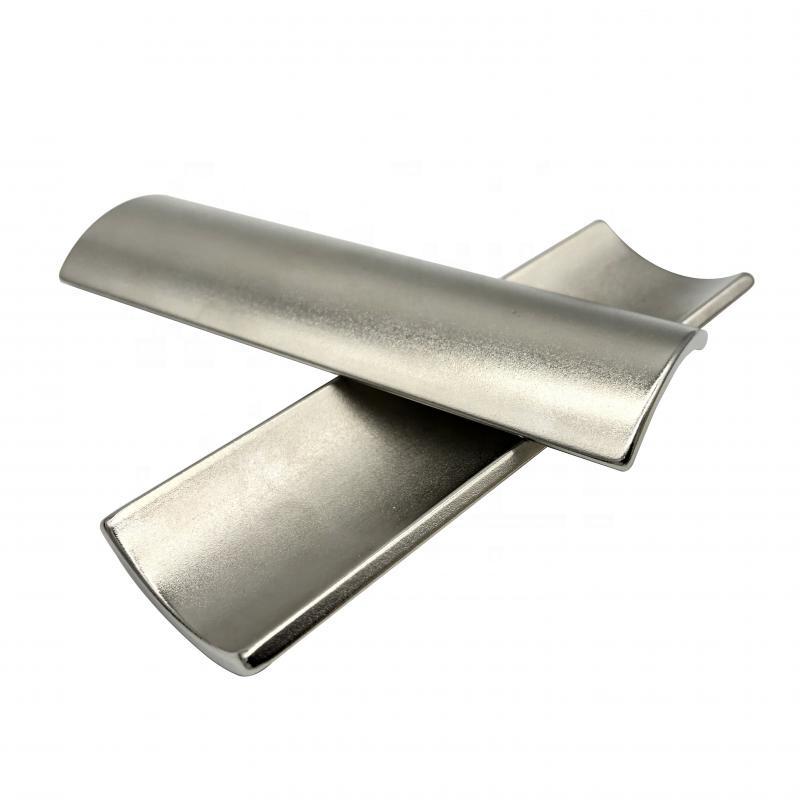

Arc Neodymium Magnet Neodymium magnet (NdFeB), commonly known as "rare earth" magnet, is a high-performance permanent magnet made of neodymium, iron and boron alloys. They are real permanent magnets and will not lose their magnetism unless heated to a temperature exceeding the maximum operating temperature rating or their protective coating is damaged. Characteristic: -Energy products may exceed 50mgoe -Low corrosion resistance Applications: -automotive -electronics (sensors, speakers, scanners) -medical (scanners) -magnetic separators

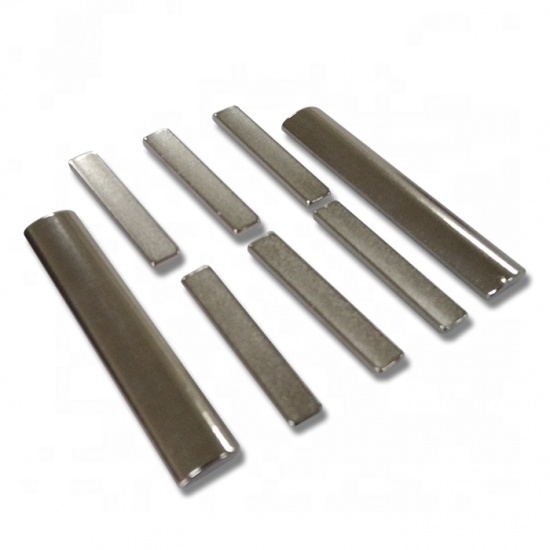

Block Neodymium Magnet 1.Dimensions: Customized / Produce according to your needs 2.Materials: NdFeB,Grade N35 to N52 (M,H,SH,UH,EH AH) 3.Plating/Coating: Nickel,Zinc,Epoxy and etc. 4.Magnetization direction: Through thickness,width,or length 5.Max operating temp.: 80 to 220 degrees celsius It can be very small block/cube,or it can be big block/bar and become a very powerful magnet.They are often used for industrial applications.
Laminated Magnet 1. Insulation layer thickness within 0.04mm. Insulation layers: 2-40 layers. 2. At normal temperature, the bonding strength of the insulation layer can reach more than 50Mpa. 3. The maximum operating temperature is 60-250 ℃. 4. Tolerance is within 0.05mm. 5. Each magnets are insulated from each other.
Laminated Magnet 1. Insulation layer thickness within 0.04mm. 2. At normal temperature, the bonding strength of the insulation layer can reach more than 50Mpa. 3. The maximum operating temperature can reach 200 ℃. 4. Tolerance is within 0.05mm. 5. Each magnets are insulated from each other.
Laminated Magnet 1. Insulation layer thickness within 0.04mm. 2. At normal temperature, the bonding strength of the insulation layer can reach more than 50Mpa. 3. The maximum operating temperature can reach 200 ℃. 4. Tolerance is within 0.05mm. 5. Each magnets are insulated from each other.
Laminated Magnet 1. Insulation layer thickness within 0.04mm. 2. At normal temperature, the bonding strength of the insulation layer can reach more than 50Mpa. 3. The maximum operating temperature can reach 200 ℃. 4. Tolerance is within 0.05mm. 5. Each magnets are insulated from each other.
Neodymium magnetic wheel/gear 1.Dimensions: Dia from 25mm to 160mm 2.Materials: NdFeB and Steel 3.Magnetization direction: Axial magnetized 4.Max operating temp.: 100 degrees celsius
Arc Neodymium Magnet 1.Dimensions: Customized / Produce according to your needs 2.Materials: NdFeB,Grade N35 to N52 (M,H,SH,UH,EH AH) 3.Plating/Coating: Nickel,Zinc,Epoxy and etc. 4.Magnetization direction: Diametrical,Width,Thickness 5.Max operating temp.: 80 to 220 degrees celsius Permanent neodymium magnets are used in place the ferrite magnet in high performance motors. The max temperature resistance of AH series can be achieved 220 degrees Celsius. If you need higher temp. resistance like 250-350 degrees Celsius,we would like to recommend Samarium Cobalt Magnet
N42 Arc Neodymium Magnet Size: φ3 ----- 220mm Grade: N35 -----N52 Working Tempt. :80---220 deg. C Shape：Ring、Cylinder、Rectangular、Runway-Type、Segmentor Customed Production Capacity：1000 tons/year Coating: Zn, Ni, NiCuNi, Gold, Epoxy, Cr, etc, (Zn-coating: equal to or above 5μm, & at least 24 hours’ Salt Spray Test; Ni-coating: equal to or above 15μm, & at least 48 hours’ Salt Spray Test or 96 hours' according to customers' request. ）
ARC Neodymium Magnet Neodymium magnet (NdFeB), commonly known as "rare earth" magnet, is a high-performance permanent magnet made of neodymium, iron and boron alloys. They are real permanent magnets and will not lose their magnetism unless heated to a temperature exceeding the maximum operating temperature rating or their protective coating is damaged. Characteristic: -Energy products may exceed 50mgoe -Low corrosion resistance Applications: -automotive -electronics (sensors, speakers, scanners) -medical (scanners) -magnetic separators
Arc Neodymium Magnet N35 N42UH N45SH And Etc. 1.Dimensions: Customized / As Required 2.Materials: Nd-Fe-B N35,N38,N40,N42,N42,N50,N52,N55 (Grade of NdFeB Magnet) 3.Plating/Coating: Nickel,Zinc,Epoxy and etc. 4.Magnetization direction: Diametrical magnetized for a pair 5.Max operating temp.: 80-220 degrees celsius Arc neodymium magnet widely use for motors,generator and etc.
Arc Neodymium Magnet with epoxy black coating Neodymium magnet (NdFeB), commonly known as "rare earth" magnet, is a high-performance permanent magnet made of neodymium, iron and boron alloys. They are real permanent magnets and will not lose their magnetism unless heated to a temperature exceeding the maximum operating temperature rating or their protective coating is damaged. Characteristic: -Energy products may exceed 50mgoe -Low corrosion resistance Applications: -automotive -electronics (sensors, speakers, scanners) -medical (scanners) -magnetic separators
ARC Neodymium Magnet Neodymium magnet (NdFeB), commonly known as "rare earth" magnet, is a high-performance permanent magnet made of neodymium, iron and boron alloys. They are real permanent magnets and will not lose their magnetism unless heated to a temperature exceeding the maximum operating temperature rating or their protective coating is damaged. Characteristic: -Energy products may exceed 50mgoe -Low corrosion resistance Applications: -automotive -electronics (sensors, speakers, scanners) -medical (scanners) -magnetic separators
Arc Neodymium Magnet with black epoxy Neodymium magnet (NdFeB), commonly known as "rare earth" magnet, is a high-performance permanent magnet made of neodymium, iron and boron alloys. They are real permanent magnets and will not lose their magnetism unless heated to a temperature exceeding the maximum operating temperature rating or their protective coating is damaged. Characteristic: -Energy products may exceed 50mgoe -Low corrosion resistance Applications: -automotive -electronics (sensors, speakers, scanners) -medical (scanners) -magnetic separators
Arc Neodymium Magnet with black epoxy Neodymium magnet (NdFeB), commonly known as "rare earth" magnet, is a high-performance permanent magnet made of neodymium, iron and boron alloys. They are real permanent magnets and will not lose their magnetism unless heated to a temperature exceeding the maximum operating temperature rating or their protective coating is damaged. Characteristic: -Energy products may exceed 50mgoe -Low corrosion resistance Applications: -automotive -electronics (sensors, speakers, scanners) -medical (scanners) -magnetic separators
