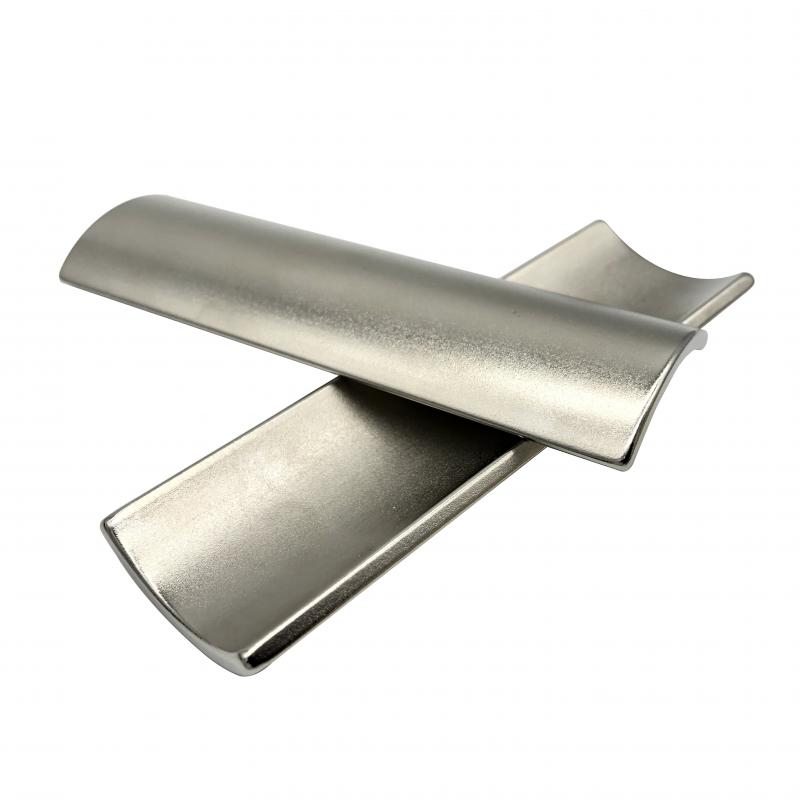

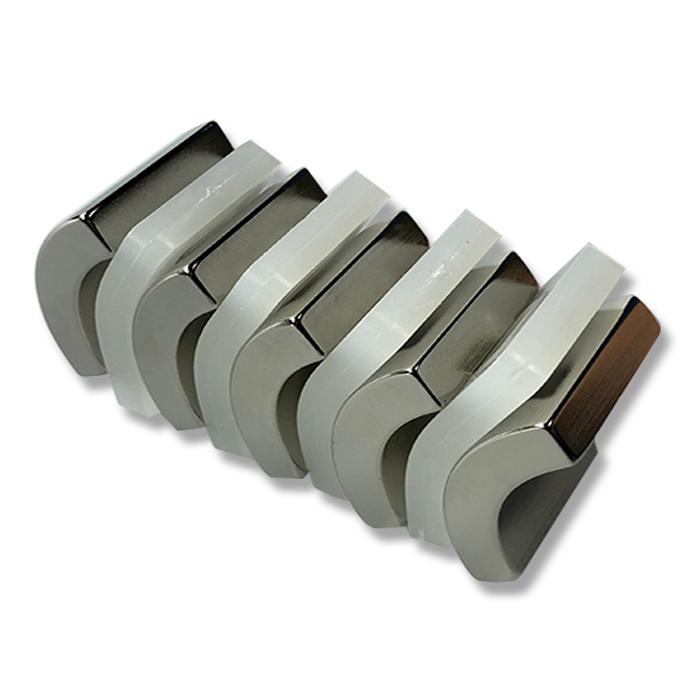

Custom N52 Neodymium Arc Magnets For Motors

Arc Neodymium Magnet N35 N42UH N45SH And Etc.

1.Dimensions: Customized / As Required

2.Materials: Nd-Fe-B N35,N38,N40,N42,N42,N50,N52,N55

(Grade of NdFeB Magnet)

3.Plating/Coating: Nickel,Zinc,Epoxy and etc.

4.Magnetization direction: Diametrical magnetized for a pair

5.Max operating temp.: 80-220 degrees celsius

Arc neodymium magnet widely use for motors,generator and etc.

Product Detail

Welcome to send me a RFQ directly by email or "leave us message" if you have exactly what size,grade,coating,magnetization direction and quantity you needs.I will respond to you within 24 hours.

How to choose cost-effective neodymium magnet?

1. Choose the appropriate magnet size according to your application.

As a manufacturer,we can produce magnets according to customers' requirements. If you choose the correct size,it can effectively avoid the increase of neodymium magnet ocst due to the use of large size.Even if you're not sure what size you need, we accept sample orders of different sizes. In that way,you can test them and willl ultimately help you develop new product/project successfully.

2. Determine the grade of NdfeB Magnet.

Basis on different grade of neodymium magnet,the temperature resistance are from 80 to 220 degree celsius. If your application requires magnet working at room temperature,the N series is the best choice,which have a max operating temperature 80 degrees Celsius. Generally speaking,the N35 grade is relatively cost-effective and also have strong magnetic force.And in the N series,the N55 grade have strongest magnetic force and more expensive.

On the other hand,the higher the temperature resistance of the NdFeB magnet,the more expensive it is. For example,N35M grade of neodymium magnet is expensive than N35 grade,although they have the same magnetic force,but the max opearting temp. of N35M is 100 degrees Celsuis

Please click following link to check the properities of permanent magnet.

Sintered neodymium magnet

Bonded neoydmium magnet

Samarium cobalt magnet

Alnico magnet

Ferrite magnet

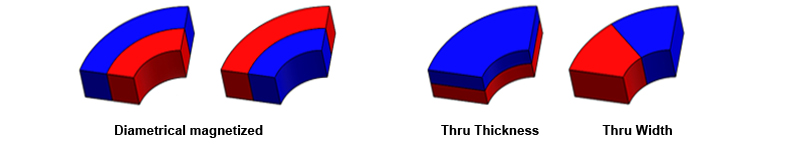

3. Confirm the direction of magnetization of magnet.

Arc NdFeB magnet can be diametrical magnetized,half pieces with N poles on outer diameter and half pieces with S pole on outer diamter,they are paired and magnetized.But if you need direction of magnwtiation through thickness or width,that can also be done.

4. Plating/Coating:

Nickel are the most common type of plating,and the salt spray test can meet the requirement of 24-48 hours.Eopxy coating have excellent against humidity and salt spray environments,the salt spray test can reach 48-72 hours.

And there are other types of palting,like zinc,chrome(NiCuNi+Cr),gold(NiCuNi+Au),phospahted,passivation and etc.


1. What is the price?

--  Will quote according to your requirements.

2. What is the delivery time?

--  Production time is about 25-35 days and also depend on your order quantity and the magnet size and shape.

3. What is the freight and transportation time?

--  Freight is depend on and will quote according to RFQ.

--  Transportation time is about 6-10 days if by express or air,30-50 days if by sea.

4. What is the trade terms?

--  It's depend on your require,we can quote price based on EXW,FOB,CNF,CIF,DDU/DAP.

5. How to get the quote of permanent magnet quickly?

--  Do not hesitate to conatct,many thanks.
