Mass Production Strong Magnetic Filter Permanent Grate Magnet Drawer Separator

Magnetic Grate Magnet


1.Square shape series,the max magnetic strength 12000GS.


2.Types: Round, square, rectangle or any odd shape can be custom made


3.2-10bars for choice,to meet different demand

Product Detail

Features

1. Frame and tube material is 304 or 316L stainless steel,good corrosion resistance and no pollution.

2. Standard magnetic grates are assembled with stainless steel frame and 25mm diameter round bars.

3. The frame and magnetic bar surface can be fine polished and full welded to meet food grade or pharmacy application.Standard working temperature ≦80℃, if needed,max working temperature from 80℃ to 350℃ is also avaiable.


Special design

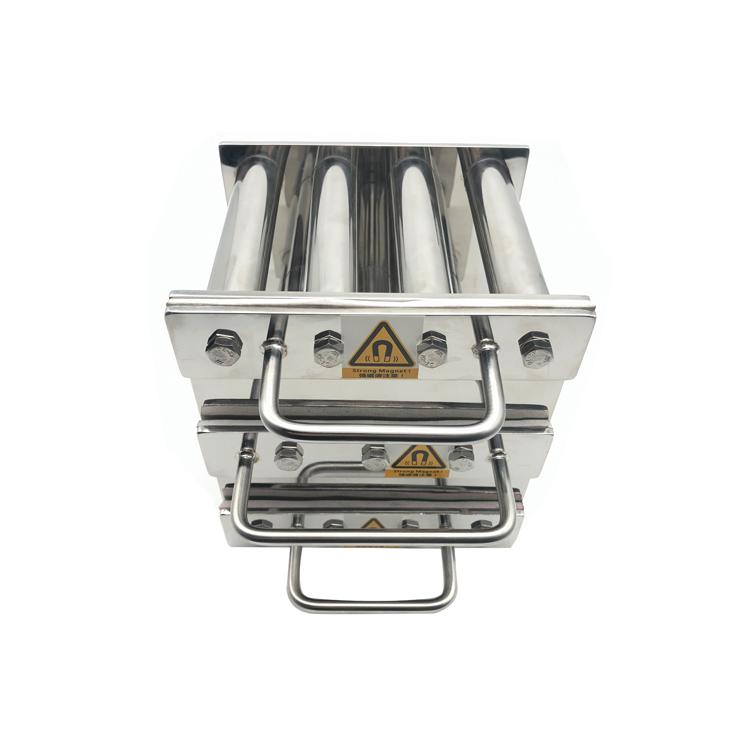

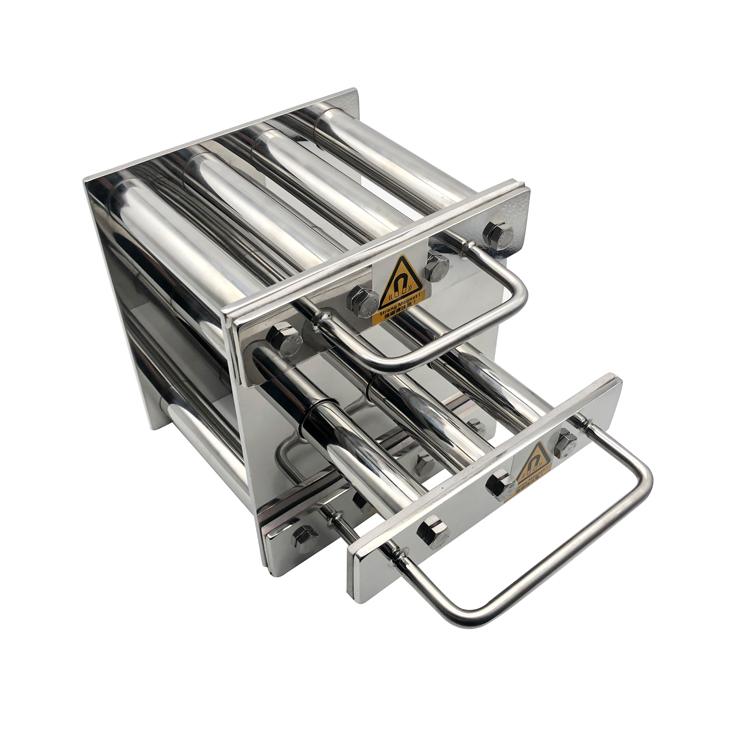

1. Easy-clean design: This design is more expedient to do cleaning Just take out the magnetic core, the iron impurites will fall from the outer shell. As shown in
Figure 01, 02

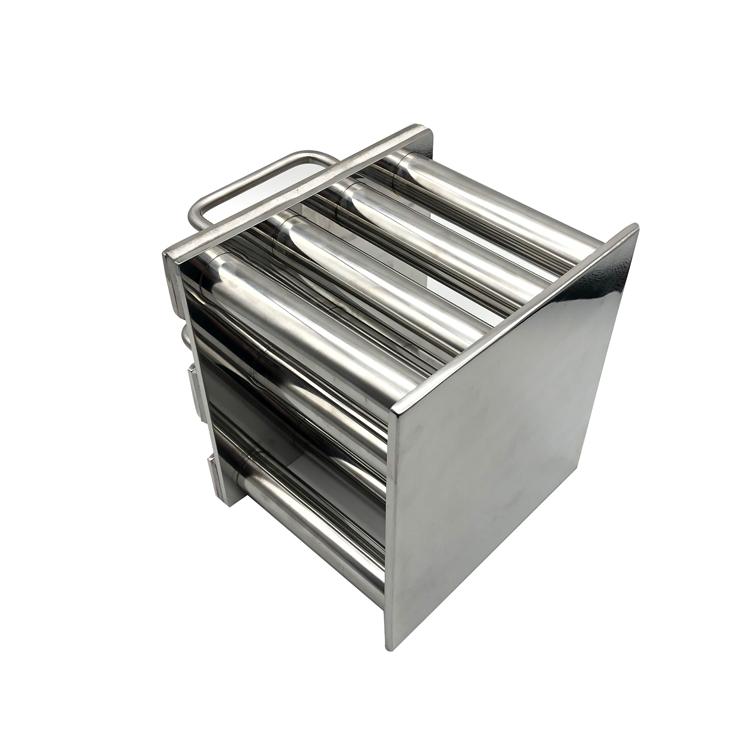

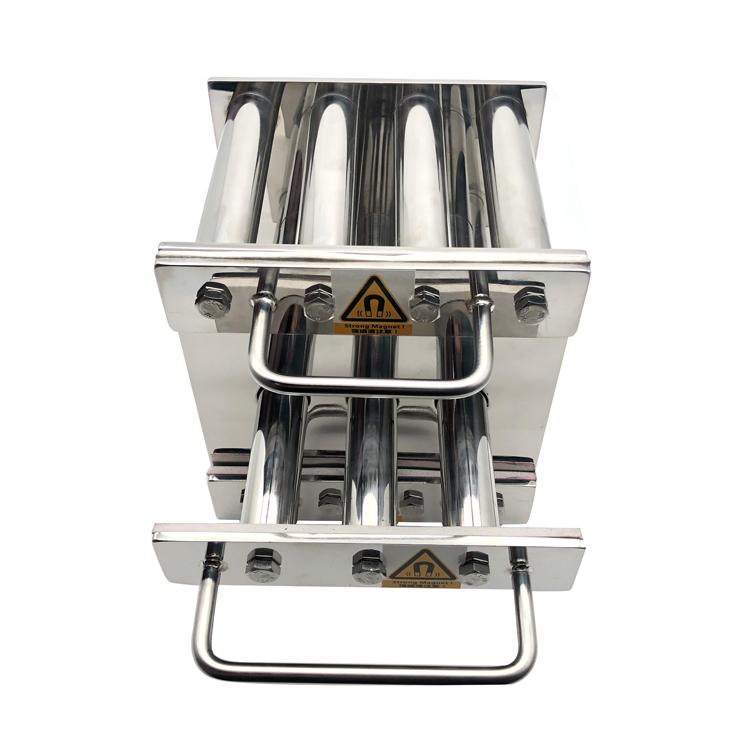

2Multiple layers design: The one in the picture is double layers. Of course, more layersbetter filter effect. As shown in Figure 06

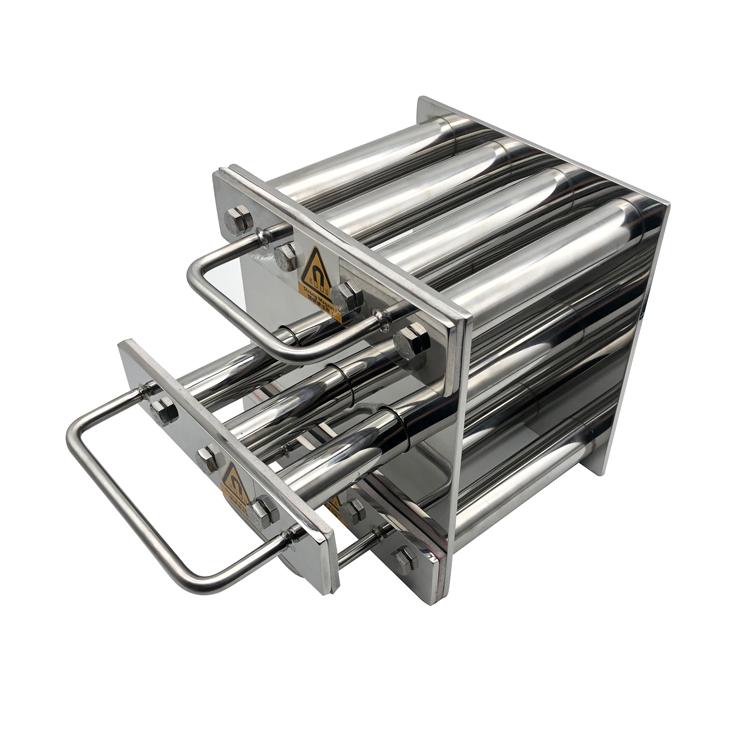

3Add baffle to direct the material onto or close the rods when it flows down. By this waymore contaminants will be attracted.Baffle can be either small rods or 90 degree angle. As shown in Figure 0305
4Adding handles aims for easy operator.Especially with big size which is too heavy to handle. Another advantage of this design is to avoid contaminants dropping down when touched by hand.



Application

Magnetic Grate is installed or simply laid-inside of hoppers, housings, and bins to trap and hold ferrous fines,fragmentsand small metal objects. please be aware these grates are built for low-abrasion materials.



Specification-Square Shape Series


 MODEL NO

Dimensionmm

No of bars

L

W

H

XMKM10/10

100

100

40

2

XMKM15/15

150

150

40

3

XMKM20/20

200

200

40

4

XMKM25/25

250

250

40

5

XMKM30/30

300

300

40

6

XMKM35/35

350

350

40

7

XMKM40/40

400

400

40

8

XMKM45/45

450

450

40

9

XMKM50/50

500

500

40

10

XMKM20/10

200

100

40

2

XMKM30/10

300

100

40

2

XMKM30/20

300

200

40

4

XMKM40/10

400

100

40

2

XMKM40/20

400

200

40

4

XMKM40/30

400

300

40

6

XMKM50/10

500

100

40

2

XMKM50/20

500

200

40

4

XMKM50/30

500

300

40

6

XMKM50/40


500


400


40


8


For more details,Please contact our specialist.
