Motor Magnet SmCo Magnet
1.Dimensions: According to your requirements
|
Physical Properties
|
Parameter Name |
Unit |
SmCo5 |
Sm2Co17 |
|
Density |
g/m³ |
8.2 ~ 8.4 |
8.3 ~ 8.5 |
|
Curie Temperature |
℃ |
700 ~ 750 |
800 ~ 850 |
|
Max. Operating Temperature |
℃ |
250 |
350 |
|
Temperature Coefficient Of Br |
%/℃ |
-0.05 |
-0.03 |
|
Vickers Hardness |
HV |
450 ~ 500 |
550 ~600 |
|
Electronic Ressistivity |
Ω.cm 10(-5) |
5 ~ 6 x 10(-5) |
8 ~ 9 x |
|
Thermal Conductivity |
W/mK |
12 |
13 |
Typical product Specification

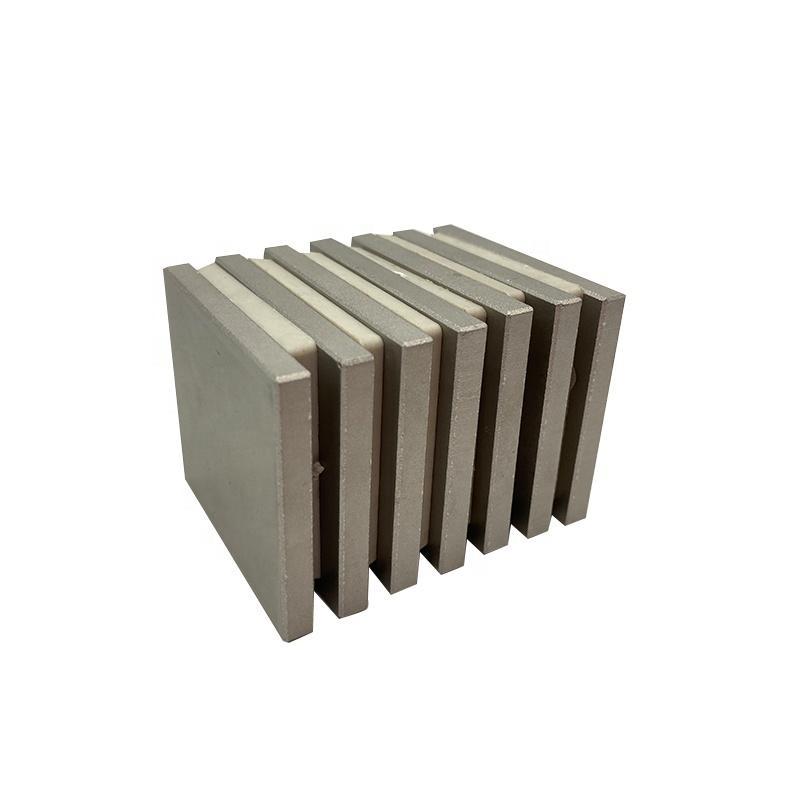

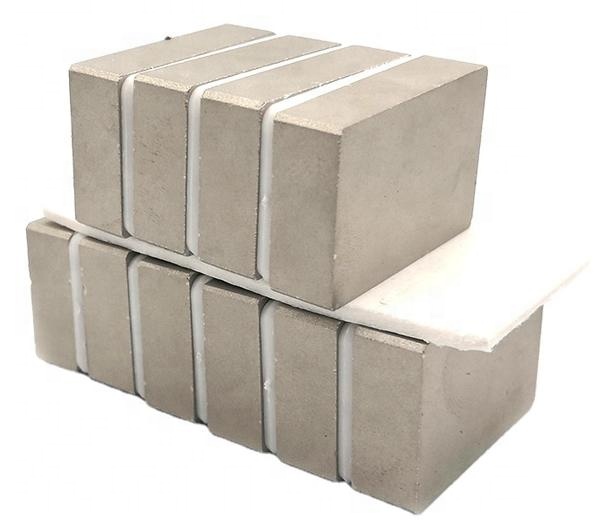

We have professional team, advanced equipment and well-trained QC staff to develop different sizes and shapes magnets as customer requirements which can be ensured with very high quality and precise tolerance.Please see below dimensions of block SmCo Magnet.
|
Length(mm) |
Width(mm) |
Thickness(mm) |
Tolerance(mm) |
|
L 2-120 |
W 1-60 |
T 1-60mm |
+/-0.05 - +/-0.1 |
Typical Applications of Samarium Cobalt Magnet
1. High temperature Motors and Generators
2. Military applications
3. Automotive (sensors)
4. Aerospace (sensors)
5. Magnetic pump couplings
6. Oil drilling applications
7. Cryogenic applications
