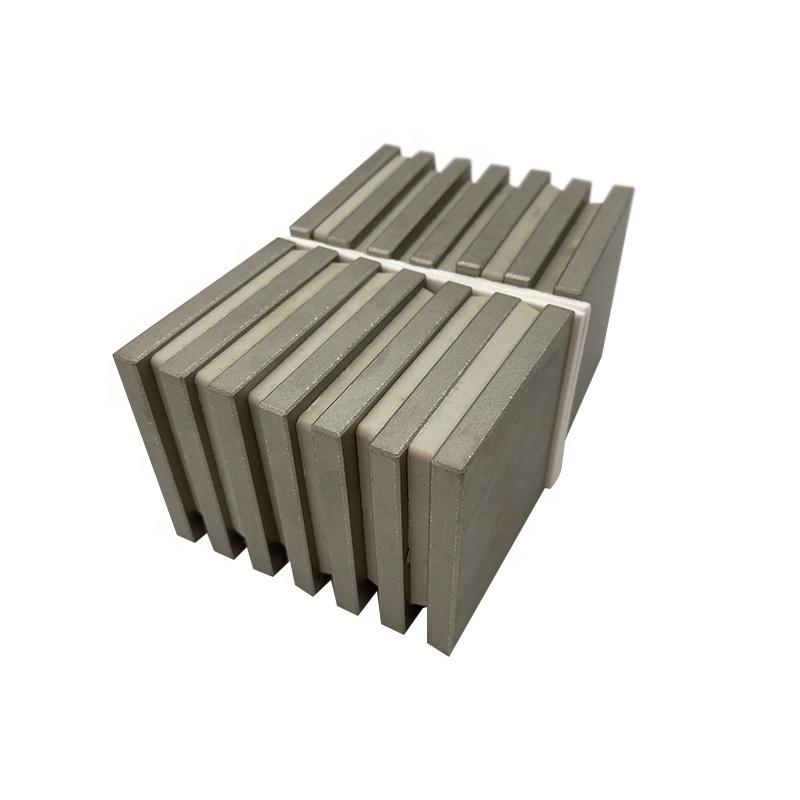

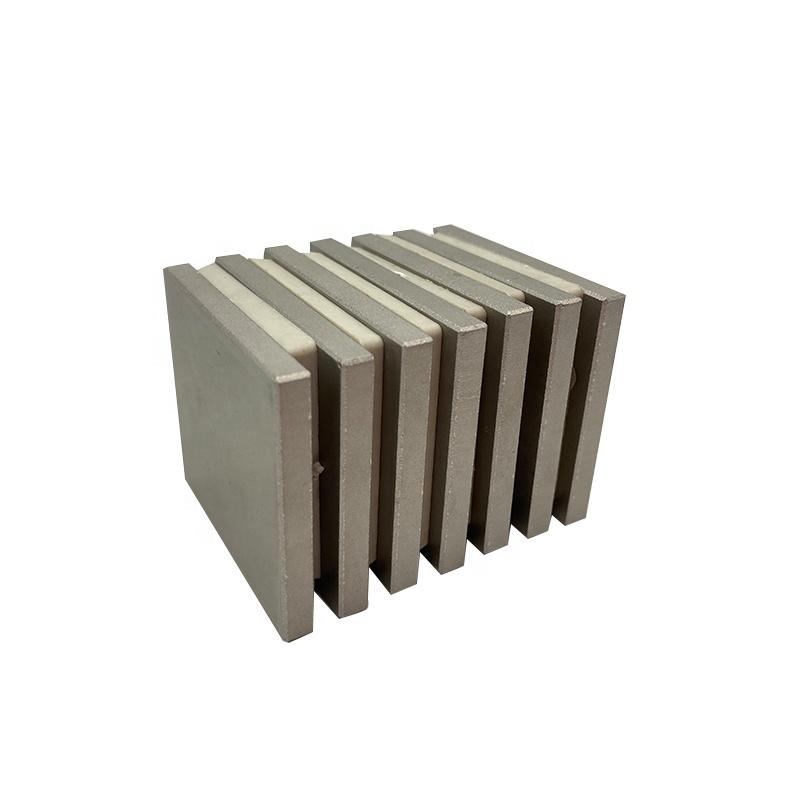

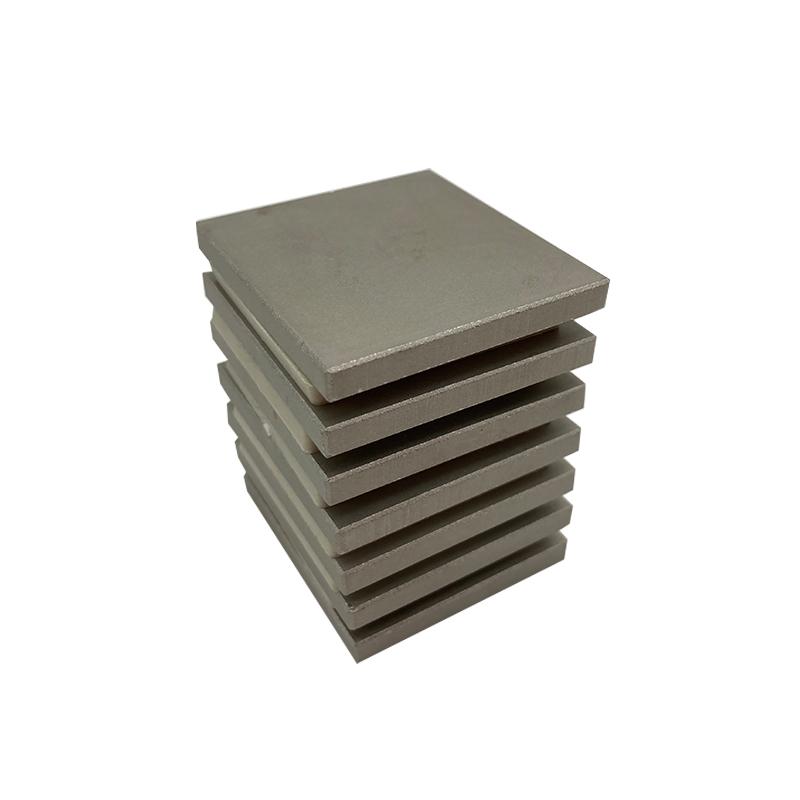

Sm2co17 hard smco magnet samarium magnet block

Motor Magnet SmCo Magnet


1.Dimensions: According to your requirements


2.Grade: YXG26 28 30,YXG26H 28H 30H and etc.


3.Max Operating Temperature: 250 ~350 degree celsius


4.Material:SmCo5,Sm2Co17


5.Magnetized: Length,Width,Thickness and Muti-Poles


6.Advantage:High working temperature,Extremely resistant to demagnetization,Resistant to corrosion

Product Detail

Physical Properties

Parameter Name

Unit

SmCo5

Sm2Co17

Density

g/m³

8.2 ~ 8.4

  8.3 ~ 8.5

Curie Temperature



700 ~ 750

 800 ~ 850

Max. Operating Temperature



  250

      350

Temperature Coefficient Of Br

%/

-0.05

 -0.03

Vickers Hardness

HV

 450 ~ 500

550 ~600

Electronic Ressistivity

Ω.cm   10(-5)

 5 ~ 6 x 10(-5

    8 ~ 9 x

Thermal Conductivity

W/mK

12

13


Typical product Specification

We have professional team, advanced equipment and well-trained QC staff to develop different sizes and shapes magnets as customer requirements which can be ensured with very high quality and precise tolerance.Please see below dimensions of block SmCo Magnet.


Length(mm)

Width(mm)

Thickness(mm)

Tolerance(mm)

L 2-120

W 1-60

T 1-60mm

+/-0.05 - +/-0.1


Typical Applications of Samarium Cobalt Magnet

1. High temperature Motors and Generators
2. Military applications
3. Automotive (sensors)
4. Aerospace (sensors)
5. Magnetic pump couplings
6. Oil drilling applications
7. Cryogenic applications


For more technical details,You also can check our Catalog of SmCo magnet.
