Custom CustomIzed Multi-Poles Code Magnetic Encoders,CustomIzed Multi-Poles Code Magnetic Encoders Manufacturer

CustomIzed Multi-Poles Code Magnetic Encoders

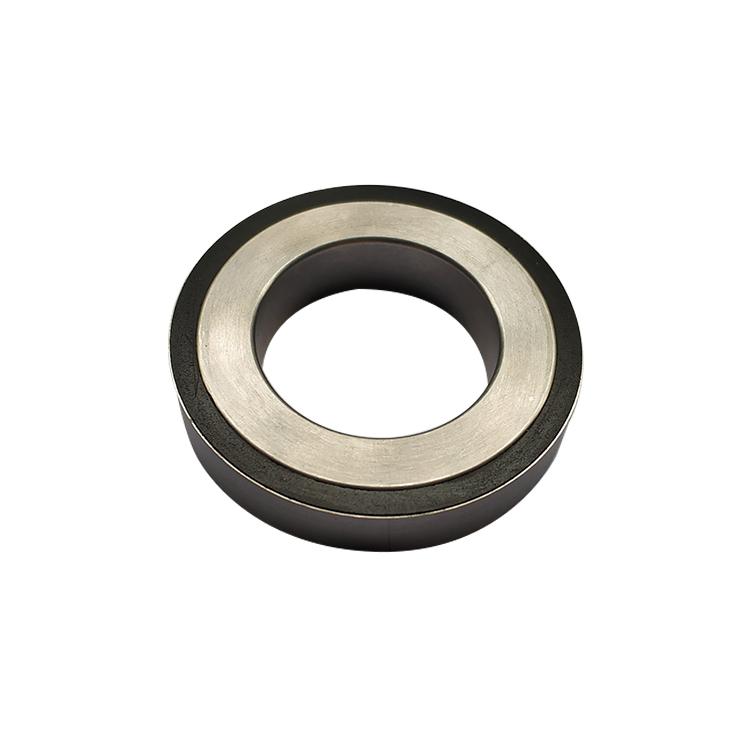

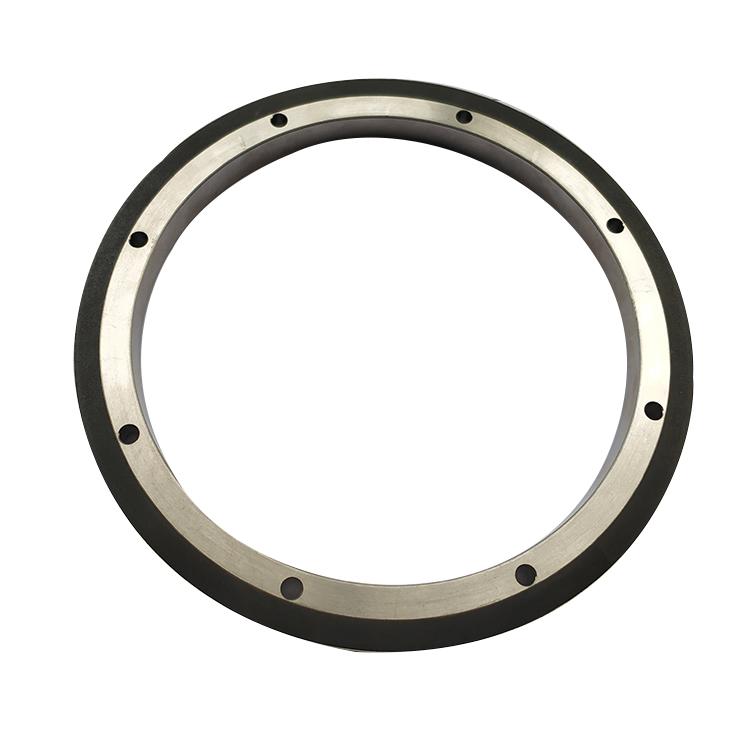

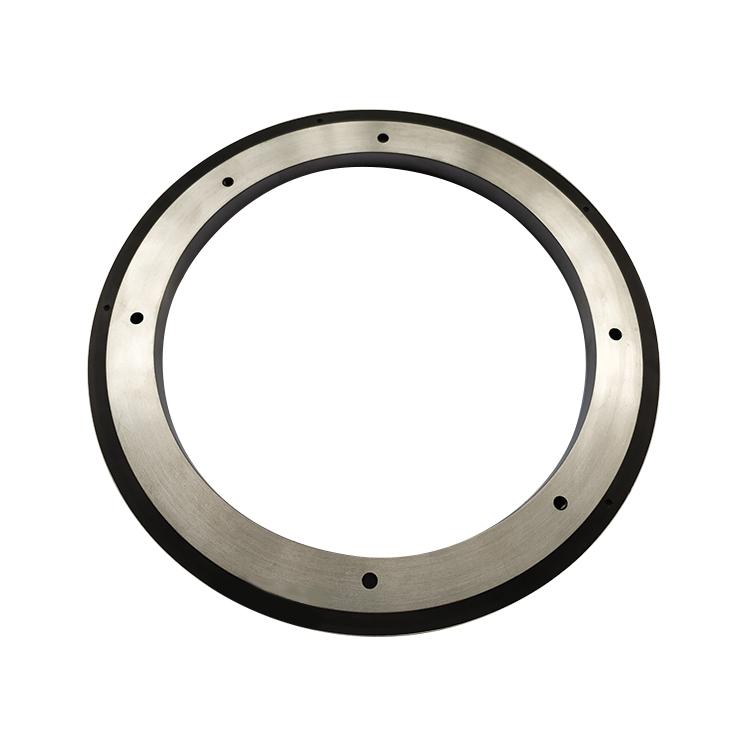

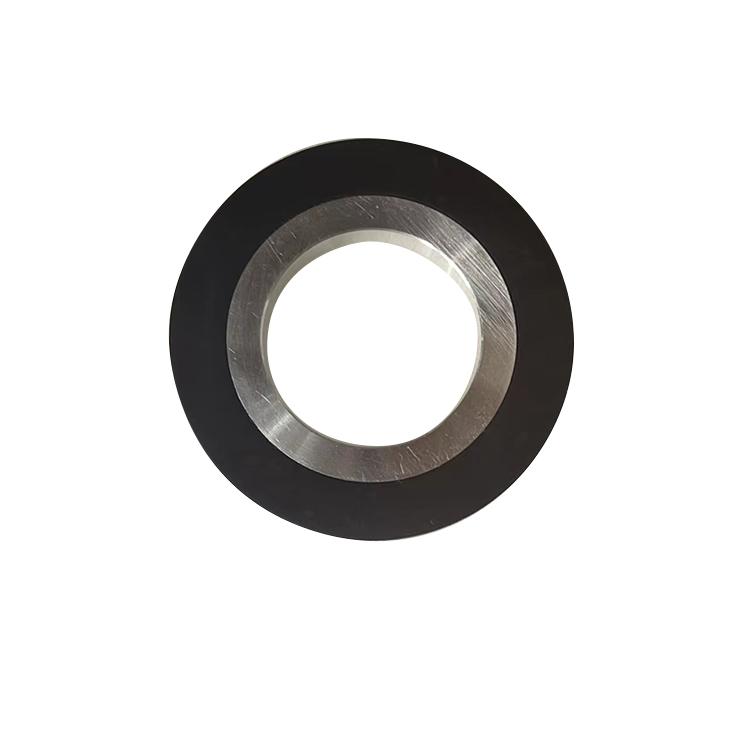

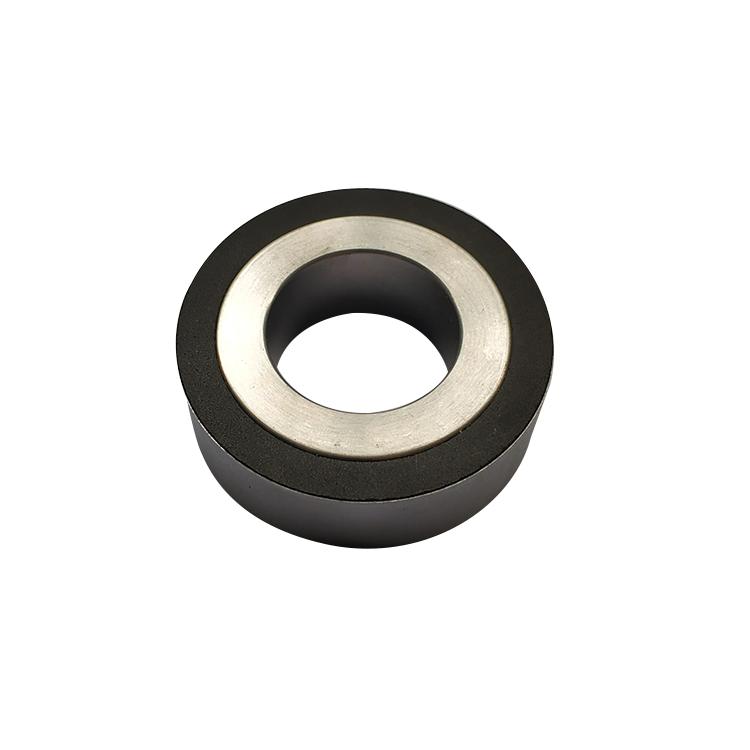

Bonded neodymium Encoder Magnet Ring

1.Dimensions: According to your requirements

2.Grade: BN-4,BN-6,BN-10 and etc

3.Max Operating Temperature: 120-160 degree celsius

4.Coating: Epoxy,Parylene

5.Magnetized: Axial,Diametrical or Multi-Poles

6.Advantage: Extreme resistance to demagnetization and complex shapes possible.

inquiry Form

Product Detail

Product Detail

Physical Properties

Density: 5.2-6.4g/cm³ - Compaction
Permeability:1.2( μH/M) - Compaction
Temperature Coefficient:-0.1 ~ -0.14(%/℃) - Compaction
Curie Temperation: 300 - 360 (℃) - Compaction
Max. Operation Temperature: 120-160 (℃) - Compaction
Hardness :35-45

Magnetic property of Bonded Neodymium magnet

Relatively powerful products. Very high resistance to demagnetization. Low operating temperature (under 80 to 150°C). For details, to click the table of bonded neodymium magnetic property.

Manufacturing Technique - Compaction Bonded Neodymium Magnet

1.Material: Isotopic NdFeB power(MQP) + Adhesives
2.Shape: Ring
3.Size Range: D1-D300 mm
4.Coating: Epoxy,Parylene,Others
5.Magnetization: Axial,Radial,Mutil-poles and so on.

6.Types: ring magnets 4 poles,6 pole magnet ring8 pole ring magnet

We have many molds,please see below,offer you some items for reference.Welcome to send me an inquiry,them we will try to match a close mold for your reference.Which can help you save more cost to develop a new mold on prototype stage.

φ10.10-φ7-1.60	φ13-φ8-4	φ18-φ8-4	φ19.40-φ8-5	φ19-φ12-30
φ19-φ10-30	φ23-φ21-3.30	φ24-φ8-20	φ25-φ23-7	φ29-φ20-25
φ30-φ24-28	φ30-φ26-36	φ33-φ29-20	φ35-φ29-50	φ39-φ30-28
φ40-φ32-75	φ44-φ39-30	φ49-φ40-30	φ52-φ40-5	φ54-φ48-40
φ56-φ50-10	φ58-φ54-3	φ62-φ57-46	φ66-φ60-26	φ76-φ70-35
φ87-φ81-27	φ8-φ3-W0.90-6	φ8-φ6.45-1.65	φ9.02-φ3.81-3.18	φ95.60-φ84.80-34.90
