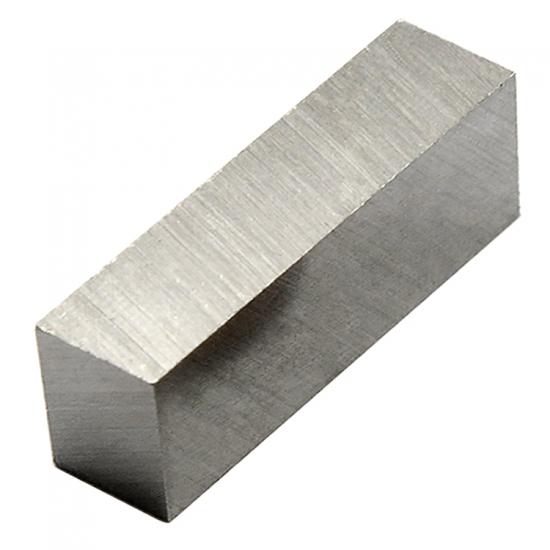

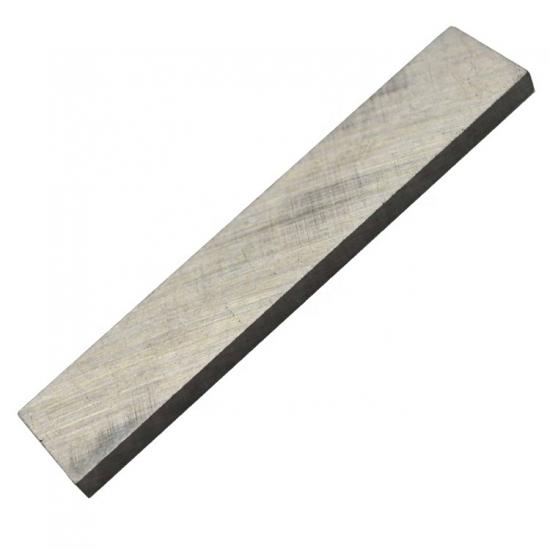

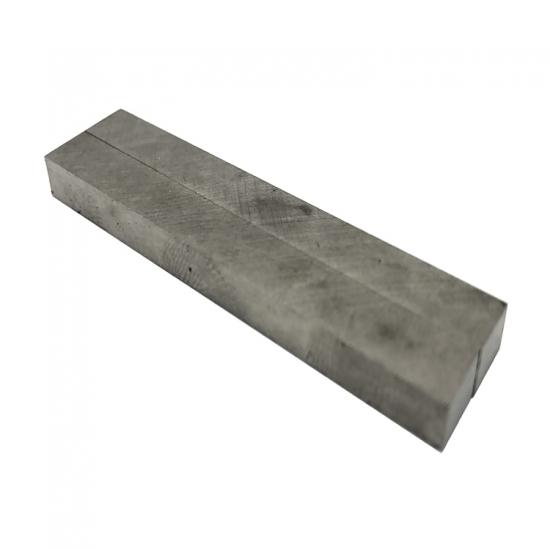

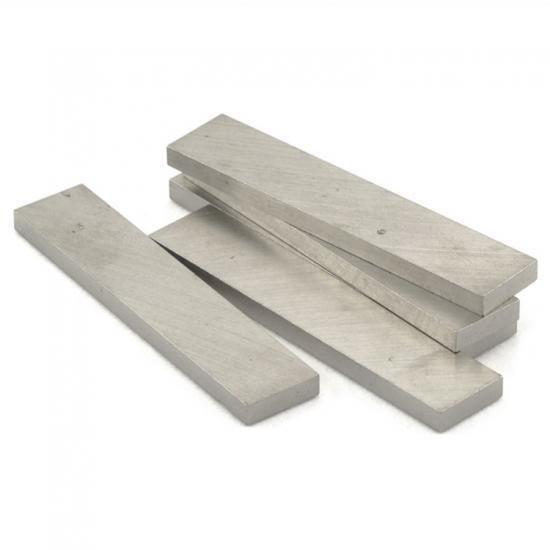

Cast Block Alnico Magnet For Guitar Pickup

Customized Alnico 8 For Guitar Pickups

1.Dimensions: According to your requirements


2.Grade: Alnico 5 , Alinico 6, Alnico 8, Alnico 9 and etc.


3.Max Operating Temperature: 450-550 degree celsius


4.Processing technique: Sintered and Cast


5.Magnetized: Thickness,Width,Length or Multi-Poles

Product Detail

Physical Properties

Cruie Temperature: 760 ~ 890℃

Max. Operatin Temperature: 450 ~ 550℃
Resistivity: 47 ~ 54  μ  Ω.cm
Hardness: 520 ~ 630 HV
Density: 6.9 ~ 7.3 g/cm³
Relative Recoil Permeablility: 1.7 ~ 4.7 μrec
Saturation Field Strength:2.7 ~ 6.3  kOe   /    215 ~ 500 kA/m
Temperature Coefficient of Br:-0.025 ~ -0.02 %/℃

Temperature Coefficient of iHc:+0.01 ~ +0.03 %/℃


Typical Applications for Alnico Magnets

1.Very high temperature applications
2.Use in hot oils
3.Clamping
4.Motors and Generators
5.Mass spectrometers
6.Precision sensors and meters
7.Aerospace

Advantages of Alnico Magnets

1. Cast Alnico offers a near net shape. Cast alnico can be produced to complex shapes with complex magnetic patterns.
2. Alnico Br as high as NdFeB at room temperature.
3. Can be used up to 450-550 degrees C.
4. Least variation in magnetic output with temperature change of any magnetic material.
5. Can be cast in very large sizes.


Cast Alnico Properties

Grades

Equivalent MMPA

  Remanence Br

Coercive Force Hcb

Maximum Energy Product  (BH)max

Density

Reversible Temp. Coefficient а(Br)

Reversible Temp. Coefficient а(Hc)

Curie Temp. TC

Working Temp. TW

Remark

mT

Gs

KA/m

Oe

KJ/m3

MGOe

g/cm3

%/oC

%/oC

oC

oC

LN10

Alnico3

600

6000

40

500

10

1.2

6.9

-0.03

-0.02

810

450

Isotropy

LNG13

Alnico2

700

7000

48

600

12.8

1.6

7.2

-0.03

0.02

810

450

LNGT18

Alnico8

580

5800

100

1250

18

2.2

7.3

-0.025

0.02

860

550

LNG37

Alnico5

1200

12000

48

600

37

4.65

7.3

-0.02

0.02

850

525

Anisotropy

LNG40

1250

12500

48

600

40

5

7.3

LNG44

1250

12500

52

650

44

5.5

7.3

LNG52

Alnico5DG

1300

13000

56

700

52

6.5

7.3

LNG60

Alnico5-7

1350

13500

59

740

60

7.5

7.3

LNGT28

Alnico6

1000

10000

57.6

720

28

3.5

7.3

-0.02

0.03

850

525

LNGT36J

Alnico8HC

700

7000

140

1750

36

4.5

7.3

-0.025

0.02

860

550

LNGT38

Alnico8

800

8000

110

1380

38

4.75

7.3

-0.025

0.02

860

550

LNGT40

820

8200

110

1380

40

5

7.3

-0.025

860

550

LNGT60

Alnico9

950

9500

110

1380

60

7.5

7.3

-0.025

0.02

860

550

LNGT72

1050

10500

112

1400

72

9

7.3

-0.025

860

550


Sintered Alnico Properties

Grades

Equivalent MMPA

Remanence Br

Coercive Force Hcj

Coercive Force Hcb

Maximum Energy Product(BH)max

Density

Reversible Temp. Coefficient αBr

Curie Temp. TC

Working Temp. TW

Remark

mT

Gs

KA/m

Oe

KA/m

Oe

KJ/m3

MGOe

g/cm3

%/oC

oC

oC

SLN8

Alnico3

520

5200

43

540

40

500

8-10

1.0-1.25

6.8

-0.02

760

450

Isotropy

SLNG12

Alnico2

700

7000

43

540

40

500

12-14

1.5-1.75

7.0

-0.014

810

450

SLNGT18

Alnico8

600

6000

107

1350

95

1200

18-22

2.25-2.75

7.2

-0.02

850

550

SLNGT28

Alnico6

1000

10000

57

710

56

700

28-30

3.5-3.8

7.2

-0.02

850

525

Anisotropy

SLNG34

Alnico5

1100

11000

51

640

50

630

34-38

3.5-4.15

7.2

-0.016

890

525

SLNGT31

Alnico8

780

7800

106

1130

104

1300

33-36

3.9-4.5

7.2

-0.02

850

550

SLNGT38

800

8000

126

1580

123

1550

38-42

4.75-5.3

7.2

-0.02

850

550

SLNGT42

880

8800

122

1530

120

1500

42-48

5.3-6.0

7.25

-0.02

850

550

SLNGT38J

Alnico8HC

730

7300

163

2050

151

1900

38-40

4.75-5.0

7.2

-0.02

850

550


For more details,You also can check our Alnico Properties
