Metal Case Magnetic Pin

Magnetic Push Pin With Steel Case


1.Dimensions: Dia 12, 16, 20, 25, 32, 36, 42 mm


2.Materials: NdFeB Magnet + Steel Case


3.Coating: Nickel


4.Magnetization direction: Axial magnetized

Product Detail

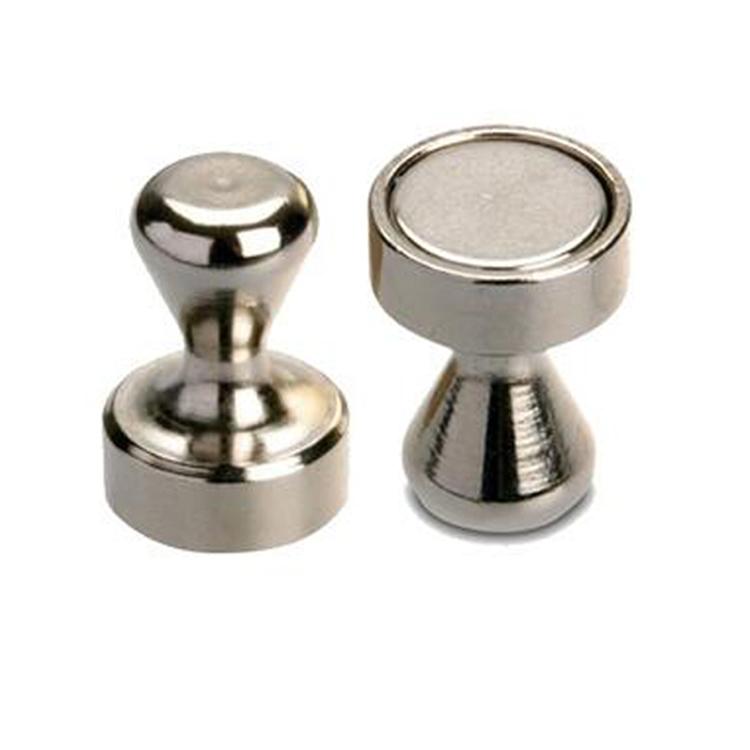

The metal case neodymium magnetic pin

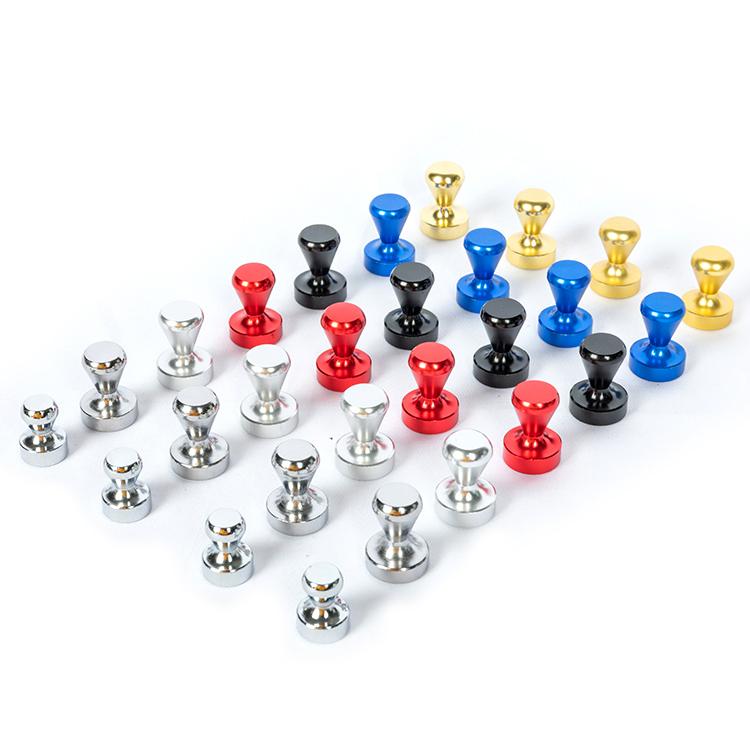

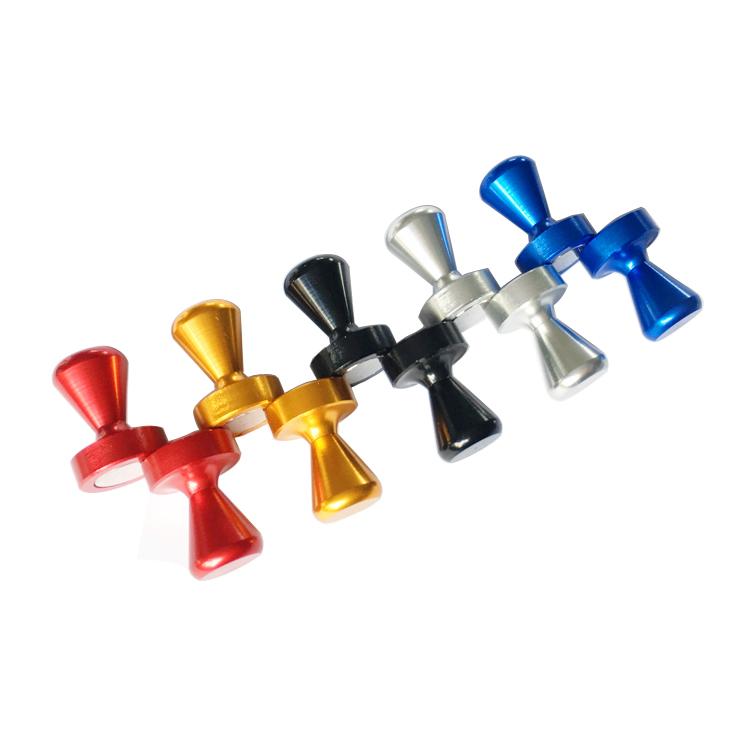

The metal case can be done with iron steel or alumium,especial for alumium material,can be with various colors by anodic oxidation process.Please see below,our molds.



Model
D
(mm)
d
(mm)
H
(mm)
h
(mm)
Weight
(g)
Hold A4
On White Board
KM-D12*16 12 10 16 4.2 9.6 12 Pieces
KM-D16*20 16 12 20 5.2 16 16 Pieces
KM-D20*25 20 14 25 7.2 30 19 Pieces
KM-D25*30 25 18 30 7 53 23 Pieces




Model
D
(mm)
d
(mm)
H
(mm)
h
(mm)
Weight
(g)
Side Breakaway
(Kg)
KM-D32*42 32 24 42 9 103 8
KM-D36*46 36 26 46 10 140 10
KM-D42*52 42 35 52 10 233 15
